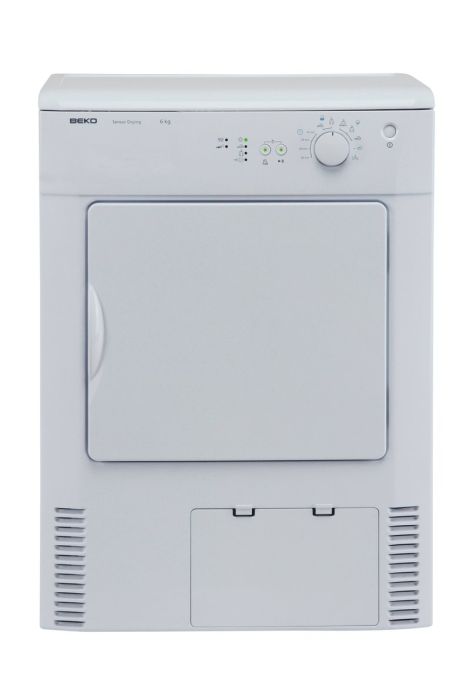

DC1560X CONDENSWASDROGER elektronisch

Artikelnr: 114909
Referentienr: DC1560X
Vergelijk

Productomschrijving

6 kg Electronic sensor
Meer informatie
Hoogte 85
Breedte 59.5
Diepte 54
Gewicht (Kg) 35
ArtRef DC1560X
AsogemID 114909
Merk BEKO
Soort Condenswasdroger
ArtEAN 8690842183782
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2962300400 1 TOP PLATE ASSY. 21 1 Meer info
2957100600 6 CABINET ASSEMBLY (TERRA-B CND DIF) 30 1 Meer info
2958100100 10 FRONT DOOR ASSEMBLY_(TERRA) 23 1 Meer info
2961900100 14 DOOR HINGE ASSEMBY 5 2 Meer info
2950480100 18 PLASTIC FOOT 2 2 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2810540973 43 USER S MANUAL (DA) 6 1 Meer info
2971300400 48 DRYER DRUM ASSEMBLY (TERRA_INOX) 34 1 Meer info
2953240300 59 ELASTIC POLY-V BELT. 14 1 Meer info
2964400300 63 MOTOR AND FAN ASSY. 33 1 Meer info
2957500400 65 HEATER ASSY 25 1 Meer info
2957001200 166 MAIN CABLE ASSEMBLY 20 1 Meer info
2951050100 174 LAMP (10W-220_240V) 8 1 Meer info
2964170200 180 ON_OFF SWITCH(ROLD D FORM) 8 1 Meer info
2963282001 186 ELECTRONIC PCB ASSY. (CND SENS_3K) 27 1 Meer info
2970209021 200 PANEL BODY 15 1 Meer info
2959800300 203 PROGRAMME KNOB BUTTON_ASSY 3 1 Meer info
2957379020 208 PANEL BODY 14 1 Meer info
2813570100 300 FUNCTION BUTTON (ARCP1) 4 2 Meer info
2957150100 341 LOCK HOOK 4 1 Meer info
2958110100 365 KICK PLATE 10 1 Meer info
2961530100 403 FIXED FOOT RUBBER 4 2 Meer info
2960120100 468 ON OFF BUTTON.. 3 1 Meer info
2827190400 481 SELECTION SWITCH 7 1 Meer info
2705870100 583 SELF LOCKING CABLE HOLDER 1 1 Meer info
2962850100 584 DRUM LIFTER (54CM_CLIP) 7 2 Meer info
2810540974 631 USER S MANUAL (EN_FL_FR_DE) 6 1 Meer info
2957590100 635 4 LED LIGHT GUIDE 2 1 Meer info
2807960900 653 CAPACITOR (EPCOS 10 ├é┬ÁF) 11 1 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 4 Meer info
2960620100 750 MAIN BOARD CARD HOLDER (3-6-9) 7 1 Meer info
2960020100 761 ON-OFF SWITCH ADAPTOR(DIF_PL0_PL0A) 2 1 Meer info
2817910100 820 SPECIAL SCREW 2 4 Meer info
2958300600 826 HEATER COVER ASSY. 21 1 Meer info
2951900100 834 DRUM BEARNG ASS. 11 1 Meer info
2960190100 842 CABLE HOLDER 2 5 Meer info
2961240100 843 WATER TANK (BOTTOM) 15 1 Meer info
2958330200 844 WATER CAP BOTTOM 2 1 Meer info
2958090100 846 CONDENSER SNAPPER 1 3 Meer info
2961300100 847 CONDENSER CHASIS ASSY. 29 1 Meer info
2950710100 860 LAMP SEAL.. 5 1 Meer info
2964220100 861 FRONT SELING FELT 14 1 Meer info
2954720100 865 LAMP GLASS.... 2 1 Meer info
2957420100 867 BLIND COVER FOR DOOR LOCK.(ARC 1 WHITE) 2 1 Meer info
2957340100 868 BLIND COVER FOR DOOR HINGE...(TERRA) 2 4 Meer info
2960630100 873 PCB HOLDER COVER (TERRA SENS_3-6-9) 6 1 Meer info
2964100100 877 CONDENSER PROCESS FAN ASSY. 12 1 Meer info
2958410100 887 HEATER GRID 2 1 Meer info
2951060200 888 MICROSWITCH 7 2 Meer info
2964200100 891 CONDENSER COOLING FAN ASSY. 12 1 Meer info
2961190200 906 SPECÄ°AL WASHER (8,1*17*1,5) 1 2 Meer info
2952310500 912 SINGLE ADHESIVE FOAM 2 1 Meer info
2952310800 914 SINGLE ADHESIVE FOAM 2 1 Meer info
2979000100 921 CONDANSER ASSY 29 1 Meer info
2953460200 925 NTC WITH CABLE (L=700 MM) 12 1 Meer info
2951580200 970 PT SCREW (6x30) 2 4 Meer info
2951620100 976 PLASTIC LEG STOPPER. 1 2 Meer info
2951660300 983 MOTOR SHAFT SEAL 7 1 Meer info
2954700100 985 OVERFLOW MICRO SWITCH ASSY 9 1 Meer info
133000001 1044 WASHER 12x18x1 DIN 988.. 1 2 Meer info
160200200 1045 ZEEGER 9x1 DIN 6799 DRCS68 2 1 Meer info
2957400400 1046 REAR PANEL ASS.. 25 1 Meer info
2957490100 1085 MOTOR BRACKET CLAMP 2 2 Meer info
2707730200 1202 PLASTIC SCREW (DIAMETER 3x20) 2 1 Meer info
2951580300 1204 C.SUNK HEAD PT SCREW(6X14)(ZINC_10.9xZn) 2 4 Meer info
2707730100 1205 PLASTIC SCREW 3x6 2 2 Meer info
2957700100 1209 LOCK HOUSING ASSY. 3 1 Meer info
2957610100 1211 LIGHT GUIDE 2 2 Meer info
9003271500 1214 PLASTIC SCREW (diameter 4x12) INOX 2 5 Meer info
2962200100 1219 REAR PANEL WITH PERFORATED SEAL ASSY. 20 1 Meer info
2957060100 1221 MOTOR BRACKET 8 1 Meer info
2960303600 1228 CABLE ASSEMBLY 2 1 Meer info
2961000100 1230 WATER CONDUCTOR ASSY. 6 1 Meer info
2985700100 1231 WATER HOLDER ASSY. (GASKET) 7 1 Meer info
2952010100 1236 DRUM RADIAL BEARING (TERRA) 5 4 Meer info
2953320100 1237 DRUM RADIAL BEARING COVER 2 4 Meer info
2953510100 1240 O-RING (17,86X2,62) 2 3 Meer info
2953520100 1241 O-RING (9 X 2) 2 2 Meer info
2958440100 1242 MICROSWICH HOLDER 2 1 Meer info
2958460100 1243 AIR GUIDER 2 1 Meer info
2958030100 1244 FILTER COVER 5 1 Meer info
2960760100 1245 POMP HOLDER 7 1 Meer info
2960304500 1246 CABLE ASSEMBLY 5 1 Meer info
2960910100 1248 SILICONE GASKET 2 1 Meer info
2960304300 1249 CABLE ASSEMBLY 5 1 Meer info
2953760300 1254 SINGLE ADHES?NE PE FOAM. 2 1 Meer info
2966001100 1256 DRUM BEARING HOUSING ASSY. (HONEYCOMB) 32 1 Meer info
2965700100 1257 FIXED FILTER ASSY.(HONEYCOMB GRILL R) 7 1 Meer info
2965800100 1258 FIXED FILTER ASSY. (LEFT) 7 1 Meer info
2965900100 1259 FILTRE CASSETTE ASSY.( HONEYCOMB GRILL) 11 1 Meer info
2956070100 1260 FLOAT POLYSTROFOAM 1 1 Meer info
2953770400 1263 SINGLE ADHESIVE PU FOAM 2 1 Meer info
2953740200 1264 SINGLE ADHESINE EPDM FOAM. 2 1 Meer info
2957580100 1268 LIGHT GUIDE SET 2 1 Meer info
2958010100 1269 CHASIS FAN COVER 10 1 Meer info
2958430100 1270 MICROSWITCH SNAPPER 2 1 Meer info
2960700100 1271 AIR GUIDING PART ASSY. 15 1 Meer info
2951040100 1273 TERMINAL HOUSING 7 1 Meer info
2957470100 1278 MICROSWITCH SHAFT (TERRA) 2 1 Meer info
2960400100 1279 SENSOR COVER HARNESS 9 1 Meer info
2957820100 1280 SWITCH SPRING 2 1 Meer info
2980020100 1282 EPDM FOAM 5 1 Meer info
2960150100 1287 RUBBER STOPPER 2 1 Meer info
2957180300 1289 SERVICE SHEET (CND_CNDU) 5 1 Meer info
2960640100 1290 DOOR SEALING GASKET_(TERRA_AV_CND) 7 1 Meer info
2953470100 1292 FELT BEARING 2 1 Meer info
9002900100 1299 COUNTERSUNK HEAD SCREW (PT-4X9_5) 2 7 Meer info
2951260400 1308 POMP WATER TANK HOSE. 5 1 Meer info
2705810300 1313 PT SCREW (3_5x8) 2 8 Meer info
2958470100 1314 AIR GUIDER HOOLING 4 1 Meer info
2960180100 1319 WATER TANK SPRING 2 2 Meer info
2960240100 1323 M6X12 HEXAGON P. HEAD BOLT(BEVELLED END) 2 4 Meer info
2953740300 1328 SINGLE ADHES_NE EPDM FOAM. 2 1 Meer info
111201120 1330 BOLT (A M4*22 DIN 7985 8.8-H) 1 1 Meer info
2953770600 1349 SINGLE ADHESIVE PU FOAM 3 1 Meer info
2953740400 1356 SINGLE ADHES_NE EPDM FOAM. 2 2 Meer info
2953740100 1365 SINGLE ADHESINE EPDM FOAM. 3 1 Meer info
2953760400 1374 SINGLE ADHES?NE PE FOAM. 2 1 Meer info
2965200100 1377 MAIN CABLE ASSEMBLY 7 1 Meer info
2951780300 1398 DELTA PT VIDA 50x26 WN 5454 HB 1 6 Meer info
2960680100 1399 NTC-THERMOSTAT GASKET 2 1 Meer info
2705810400 1417 PT SCREW (3_5x14) 1 14 Meer info
2953770700 1458 SINGLE ADHESIVE PU FOAM 2 1 Meer info
9003271700 1497 PLASTIC SCREW 9 1 Meer info
2972820100 4210 FILTER GROUP 10 1 Meer info
130500120 8314 SERRATED LOCK WASHER (A4.3 DIN 6798) 1 4 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 1 Meer info
130200530 8323 WASHER (B6 DIN127) 1 4 Meer info
2960220100 8375 M4X10 TAPTITE SCREW 2 4 Meer info
9001231200 8382 PLASTIC CLAMP. 298 mm 1 3 Meer info
9002880120 8383 DOME HEAD SCREW (PT-4X6) 1 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 7 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 25 Meer info
9003610300 8392 sheet metal screw(B4_2x9_5-perforated) 1 12 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 5 Meer info
9003610100 8397 SHEET METAL SCREW(B4_2x9_5-perforated) 1 37 Meer info
9003270900 8399 PLASTIC SCREW 1 1 Meer info
9003860300 8403 SHEET METAL SCREW 1 12 Meer info
2704720100 8409 PT SCREW (COUNTERSUNK HEAD 3.5X13) 1 2 Meer info
9001590200 8410 CABLE CLAMP 1 5 Meer info
120800120 8413 FIBERED_NUT_M6X1_DIN_985 1 1 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 1 Meer info
