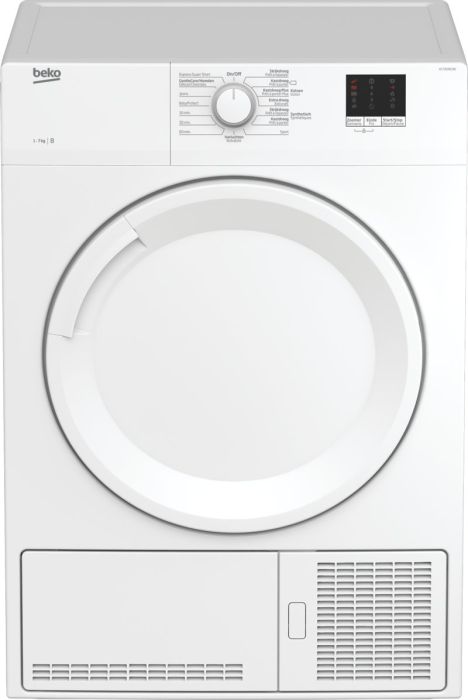

KC720301BX CONDENSWASDROGER

Artikelnr: 114107

Referentienr: KC720301BX

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

7 Kg sensor drying Time delay3/6/9

Specificaties

Meer informatie
Hoogte	84.6
Breedte	59.7
Diepte	56.8
Gewicht (Kg)	32.5
Kleur	Wit
Jaarlijks verbruik (kWh)	504
Hoogte met verpakking	88
Breedte met verpakking	65
Diepte met verpakking	58.5
Gewicht VPE (Kg)	33.5
ArtRef	KC720301BX
AsogemID	114107
MPN	7182581840
Merk	BEKO
Going prijs	999,99
Soort	Condenswasdroger
ArtEAN	8690842187117

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2988800100	1	TOP PLATE GR.	19	1	Meer info
2988801700	1	TOP PLATE GR.	19	0	Meer info
2977460100	10	FRONT DOOR ASSY.	21	1	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2960311666	43	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2985421700	48	DRUM ASSEMBLY	31	1	Meer info
2962470200	59	ELASTIC POLY-V BELT. 7PH 1956	13	1	Meer info
2971420100	63	Dryer Motor Group WELLING	31	1	Meer info
2976680600	65	HEATER ASSY	24	0	Meer info
2983230100	65	HEATER ASSY	22	1	Meer info
2970442600	169	POWER SUPPLY CORD	15	0	Meer info
2970443400	169	POWER SUPPLY CORD	7	0	Meer info
2970447300	169	POWER SUPPLY CORD	15	0	Meer info
2975792701	186	ELECTRONIC_BOARD(MONO)	30	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2977269038	200	PANEL ASSEMBLY	18	1	Meer info
2976141700	203	SELECTOR KNOB GR.	5	1	Meer info
2977259038	208	PANEL BODY.	15	1	Meer info
2979730100	341	LOCK HOOK	1	1	Meer info
265900012	374	OVEN LAMP 15 W-230 V	6	1	Meer info
2975060100	401	FRONT PANEL (BX-ABX-PLX)	20	1	Meer info
2966280100	510	KICK PLATE BUTTON	2	1	Meer info
2962350200	577	PUSH BUTTON SPRING	1	1	Meer info
2975020100	581	REAR PANEL CABLE GUIDE	3	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	4	Meer info
2967011100	584	DRUM LIFTER	7	2	Meer info
2960311667	631	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807960400	653	CAPACITOR (ARCOTRONICS 8 uF)	11	1	Meer info
2807963100	653	CAPACITOR (BICAI 8 uF).	10	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	4	Meer info
2975530200	750	PCB HOLDER	9	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2968410100	822	KICK PLATE-LEFT	10	1	Meer info
2972900500	826	HEATER COVER ASSY	20	1	Meer info
2972900600	826	HEATER COVER ASSY	18	0	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2959400200	834	REAR BEARING ASSEMBLY	10	1	Meer info
2964470100	843	WATER TANK (BOTTOM_7KG_54CM)	18	1	Meer info
2958330200	844	WATER CAP BOTTOM	2	1	Meer info
2968390100	845	KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT	8	1	Meer info
2962680100	846	CONDENSER SNAPPER	1	2	Meer info
2979640200	847	PLASTIC CHASIS ASSY ECO54cm	24	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	1	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330200	861	FRONT SELING FELT	14	0	Meer info
2963330500	861	FRONT SELING FELT	13	1	Meer info
2963330800	861	FRONT SELING FELT	12	0	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2962930200	877	PROCESS FAN	8	1	Meer info
2951060600	888	MICRO SWITCH	7	0	Meer info
2951060700	888	MICRO_SWITCH	8	0	Meer info
2951061000	888	MICRO_SWITCH	7	0	Meer info
2961680200	891	COOLING FAN	6	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	2	Meer info
2980000200	921	CONDENDER ASSY. (54CM)	31	0	Meer info
2980000300	921	CONDENDER ASSY. (54CM)	30	0	Meer info
2980000500	921	CONDENDER ASSY. (54CM)	35	1	Meer info
2961961100	932	SIDE PANEL	19	2	Meer info
4246980100	970	4_20 PY HB ZN SCREW.	1	3	Meer info
2954700100	985	OVERFLOW MICRO SWITCH ASSY	9	1	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973903100	1046	REAR PANEL ASSY	23	1	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
2962630100	1098	FAN COVER - COOLING	6	1	Meer info
2969500300	1209	LOCK BODY ASS_(SPRING_WIRE_DIA_1_4)	8	1	Meer info
2961000100	1230	WATER CONDUCTOR ASSY.	6	1	Meer info
2985800100	1231	WATER HOLDER ASSY. (GASKET)	8	1	Meer info
2953510100	1240	O-RING (17,86X2,62)	2	3	Meer info
2953520100	1241	O-RING (9 X 2)	2	2	Meer info
2979290100	1244	POMP COVER	7	1	Meer info
2971703502	1246	CABLE ASSEMBLY	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2976623800	1249	CABLE ASSEMBLY	8	1	Meer info
2972300300	1259	FILTRE CASETTE ASSY	12	1	Meer info
2972870100	1260	OVERFLOW FLOAT	5	1	Meer info
2970020100	1271	AIR GUIDING PART	9	1	Meer info
2979680200	1279	BEARING SENSOR COVER ASSEMBLY	7	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2962590100	1290	DOOR GASKET	8	1	Meer info
2963120400	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	2	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	2	Meer info
2987800100	1314	ROUTER GROUP AIR OUTLET	10	1	Meer info
2977339013	1396	BUTTON ASSEMBLY	6	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	4	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	2	Meer info
2983410100	1440	PLASTIC FOOD ASSY (2K)	1	2	Meer info
2963180200	1451	BACK COVER FELT	12	1	Meer info
2963090200	1454	AIR GUIDING GASKET	8	1	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	2	Meer info
2951261200	1460	POMP WATER TANK HOSE.	4	1	Meer info
2951260800	1462	POMP WATER TANK HOSE.	5	1	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	6	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2977180100	1472	Button GUIDE	4	1	Meer info
2962390100	1473	LOCK MOUTH	1	1	Meer info
2963420100	1478	WATER COLLECTOR	1	1	Meer info
2961720300	1481	COOLING AIR INFLOW RECTIFIER	3	1	Meer info
2963240200	1482	COOLING AIR INFLOW FELT	5	1	Meer info
2963250100	1483	COOLING AIR OUTFLOW FELT	6	1	Meer info
2975050100	1484	SIDE SUPPORT BRACKET RIGHT (54cm)	7	1	Meer info
2966540200	1485	SIDE SUPPORT BRACKET (54cm)	4	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2968370100	1489	UP HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2968380100	1490	DOWN HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2962340100	1491	SPRING BACK BUTTON	1	1	Meer info
9003271700	1497	PLASTIC SCREW	9	3	Meer info
2982700100	1504	FLUFF FILTER ASSY.	7	1	Meer info
2965090100	1522	KICK PLATE BUTTON SPRING	1	1	Meer info
2975540200	1568	PCB HOLDER COVER	9	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2975193804	2099	CABLE ASSEMBLY	8	1	Meer info
2975193900	2100	CABLE ASSEMBLY	8	1	Meer info
2975210100	2101	GROUNDING CLAMP	1	1	Meer info
2975120100	2102	SOCKET COVER BLACKBOX	4	1	Meer info
2974960100	2103	BLACKBOX_SMALLER	6	1	Meer info
2953742700	2106	SINGLE ADHESINE EPDM FOAM	1	1	Meer info
2975030100	2108	HEATHER SOCKET POCKET	8	1	Meer info
2975520100	2112	PROGRAMME KNOB LOCK PART	1	1	Meer info
2976490200	2115	SOCKET BOX	2	1	Meer info
2977890100	2117	CARD INSIDE GASKET	4	1	Meer info
2975194000	2118	CABLE ASSEMBLY	4	1	Meer info
1883880600	4210	EMC FILTER	12	0	Meer info
1883880500	4210	EMC FILTER	10	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	10	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	3	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	19	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	29	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	13	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	2	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	5	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	4	Meer info
2979380100	8436	CABLE HOLDER	1	1	Meer info
2979380500	8436	CABLE HOLDER	1	1	Meer info
