Productomschrijving

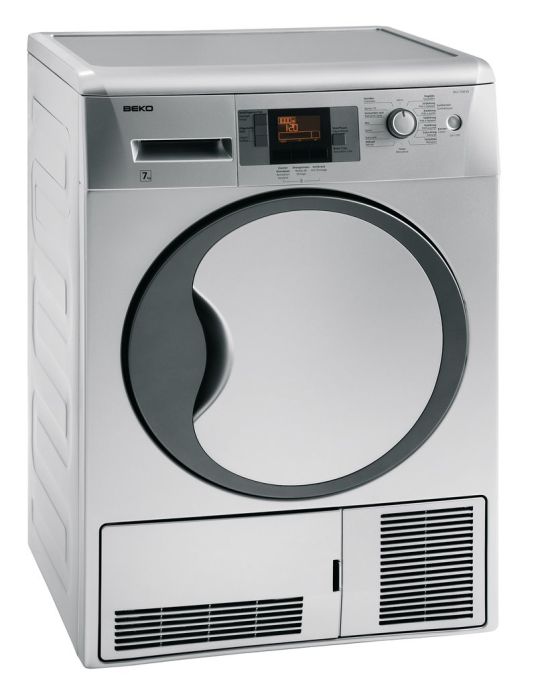

7 Kg TU sensor drying DISPLAY SILVER
| Hoogte | 84.6 |
|---|---|
| Breedte | 59.5 |
| Diepte | 53 |
| Gewicht (Kg) | 36 |
| Jaarlijks verbruik (kWh) | 504 |
| ArtRef | DCU7330XS |
| AsogemID | 114586 |
| MPN | 7185531200 |
| Merk | BEKO |
| Soort | Condenswasdroger |
| ArtEAN | 8690842366000 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2974600700 | 1 | TOP PLATE ASSY | 24 | 1 | Meer info | |||
| 2976601100 | 10 | FRONT DOOR ASSEMBLY | 30 | 1 | Meer info | |||
| 2962120100 | 12 | INNER DOOR_(ARES_ARC1_WITHOUT_SWITCH) | 14 | 1 | Meer info | |||
| 2962170200 | 14 | HINGE | 10 | 1 | Meer info | |||
| 2973500100 | 18 | ADJUSTABLE PLASTIC FOOT ASSY. | 2 | 2 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 3 | Meer info | |||
| 2960310347 | 43 | USERS MANUAL (EU LANGUAGES) | 8 | 1 | Meer info | |||
| 2985421800 | 48 | DRUM ASSEMBLY | 31 | 1 | Meer info | |||
| 2962470200 | 59 | ELASTIC POLY-V BELT. 7PH 1956 | 13 | 1 | Meer info | |||
| 2963140200 | 63 | DRYER MOTOR.. | 31 | 1 | Meer info | |||
| 2970101400 | 65 | HEATER ASSY | 24 | 1 | Meer info | |||
| 2971602200 | 166 | MAIN CABLE ASSEMBLY | 21 | 1 | Meer info | |||
| 2970444800 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2970445300 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2970446900 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2964170100 | 180 | PUSH BUTTON SWITCH (ON_OFF) | 8 | 1 | Meer info | |||
| 2961561002 | 186 | ELECTRONIC PCB ASSY.(CNDU MLCD INVERTED) | 30 | 1 | Meer info | |||
| 491500303 | 189 | POLY-V 285 H 4 MA BELT | 10 | 1 | Meer info | |||
| 2963749060 | 197 | DRAWER PANEL ASS. | 15 | 1 | Meer info | |||
| 2975309081 | 200 | PANEL ASSEMBLY | 25 | 1 | Meer info | |||
| 2976701800 | 203 | PROGRAMME KNOB BUTTOM_ASSY | 7 | 1 | Meer info | |||
| 2962150100 | 341 | LOCK HOOK | 1 | 1 | Meer info | |||
| 265900012 | 374 | OVEN LAMP 15 W-230 V | 6 | 1 | Meer info | |||
| 2976501100 | 399 | OUTER RING DOOR ASSY | 30 | 1 | Meer info | |||
| 2963580700 | 401 | FRONT PANEL | 22 | 1 | Meer info | |||
| 2963715500 | 468 | ON OFF BUTTON (TIP02+ARC 734 MAVI) | 4 | 1 | Meer info | |||
| 2827190400 | 481 | SELECTION SWITCH | 7 | 1 | Meer info | |||
| 2966980100 | 581 | HEATER CABLE GUARD | 4 | 1 | Meer info | |||
| 2705870100 | 583 | SELF LOCKING CABLE HOLDER | 1 | 3 | Meer info | |||
| 2967011100 | 584 | DRUM LIFTER | 7 | 2 | Meer info | |||
| 2960310348 | 631 | USERS MANUAL (EU LANGUAGES) | 8 | 1 | Meer info | |||
| 2962160100 | 632 | HINGE BUSHING | 1 | 4 | Meer info | |||
| 2807960400 | 653 | CAPACITOR (ARCOTRONICS 8 uF) | 11 | 1 | Meer info | |||
| 2963790100 | 750 | PCB HOLDER | 8 | 1 | Meer info | |||
| 2973800100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 17 | 0 | Meer info | |||
| 2973800700 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 16 | 0 | Meer info | |||
| 2973801100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 15 | 1 | Meer info | |||
| 2963545500 | 822 | KICK PLATE - LEFT | 20 | 1 | Meer info | |||
| 2972900500 | 826 | HEATER COVER ASSY | 20 | 1 | Meer info | |||
| 2972900600 | 826 | HEATER COVER ASSY | 18 | 0 | Meer info | |||
| 2962020100 | 827 | UPPER BEAM | 0 | 1 | Meer info | |||
| 2959400200 | 834 | REAR BEARING ASSEMBLY | 10 | 1 | Meer info | |||
| 2960190100 | 842 | CABLE HOLDER | 2 | 4 | Meer info | |||
| 2963820100 | 843 | WATER TANK (UP_7KG_54CM) | 16 | 1 | Meer info | |||
| 2961290200 | 844 | DISCHARGING FUNNEL | 2 | 1 | Meer info | |||
| 2963535500 | 845 | KICK PLATE - RIGHT | 17 | 1 | Meer info | |||
| 2962680100 | 846 | CONDENSER SNAPPER | 1 | 2 | Meer info | |||
| 2975700100 | 847 | PLASTIC CHASIS ASSY | 31 | 1 | Meer info | |||
| 2974940100 | 856 | HINGE PIN HOLDER (PLASTIC) | 1 | 2 | Meer info | |||
| 2963150100 | 857 | SPRING | 4 | 1 | Meer info | |||
| 2963330100 | 861 | FRONT SELING FELT | 13 | 1 | Meer info | |||
| 2962650100 | 865 | LAMP COVER | 4 | 1 | Meer info | |||
| 2962930200 | 877 | PROCESS FAN | 8 | 1 | Meer info | |||
| 2951060600 | 888 | MICRO SWITCH | 7 | 0 | Meer info | |||
| 2951060700 | 888 | MICRO_SWITCH | 8 | 0 | Meer info | |||
| 2951061000 | 888 | MICRO_SWITCH | 7 | 0 | Meer info | |||
| 2961680200 | 891 | COOLING FAN | 6 | 1 | Meer info | |||
| 2951260100 | 897 | POMP WATER TANK HOSE. | 5 | 1 | Meer info | |||
| 2961190200 | 906 | SPECÄ°AL WASHER (8,1*17*1,5) | 1 | 2 | Meer info | |||
| 2980000200 | 921 | CONDENDER ASSY. (54CM) | 31 | 0 | Meer info | |||
| 2980000100 | 921 | CONDENDER ASSY. (54CM) | 33 | 1 | Meer info | |||
| 2961963800 | 932 | SIDE PANEL | 20 | 2 | Meer info | |||
| 2954700100 | 985 | OVERFLOW MICRO SWITCH ASSY | 9 | 1 | Meer info | |||
| 2954700400 | 985 | Micro Switch Ass. | 10 | 1 | Meer info | |||
| 2962510600 | 1005 | CONDENS PUMP | 21 | 1 | Meer info | |||
| 2962510800 | 1005 | CONDENS PUMP | 18 | 0 | Meer info | |||
| 133000001 | 1044 | WASHER 12x18x1 DIN 988.. | 1 | 2 | Meer info | |||
| 160200200 | 1045 | ZEEGER 9x1 DIN 6799 DRCS68 | 2 | 1 | Meer info | |||
| 2973902900 | 1046 | REAR PANEL ASSY | 23 | 1 | Meer info | |||
| 492204404 | 1077 | PULLEY ASSY FOR SERVICE-ARES | 19 | 1 | Meer info | |||
| 2963110100 | 1087 | HOSE AND CABLE HOLDER | 1 | 2 | Meer info | |||
| 2962630100 | 1098 | FAN COVER - COOLING | 6 | 1 | Meer info | |||
| 2969500300 | 1209 | LOCK BODY ASS_(SPRING_WIRE_DIA_1_4) | 8 | 1 | Meer info | |||
| 2979290100 | 1244 | POMP COVER | 7 | 1 | Meer info | |||
| 2971703502 | 1246 | CABLE ASSEMBLY | 5 | 1 | Meer info | |||
| 2960910300 | 1248 | SILICONE GASKET | 1 | 1 | Meer info | |||
| 2977904200 | 1249 | CABLE ASSEMBLY | 5 | 1 | Meer info | |||
| 2973100100 | 1256 | SHAFT-FRONT BEARING ASSY | 21 | 1 | Meer info | |||
| 2972300100 | 1259 | FILTRE CASETTE ASSY | 13 | 1 | Meer info | |||
| 2962960100 | 1260 | OVERFLOW FLOAT | 1 | 1 | Meer info | |||
| 2970020100 | 1271 | AIR GUIDING PART | 9 | 1 | Meer info | |||
| 2968300300 | 1279 | BEARING SENSOR COVER ASSEMBLY | 8 | 1 | Meer info | |||
| 2960150100 | 1287 | RUBBER STOPPER | 2 | 1 | Meer info | |||
| 2962590100 | 1290 | DOOR GASKET | 8 | 1 | Meer info | |||
| 2963120100 | 1295 | MOTOR BRACKET CLAMP (PLASTIC) | 2 | 2 | Meer info | |||
| 2963830100 | 1303 | TANK GUIDE (TOP_54CM) | 15 | 1 | Meer info | |||
| 2961390300 | 1306 | TANK GUIDE BARRIER | 5 | 1 | Meer info | |||
| 2705810300 | 1313 | PT SCREW (3_5x8) | 2 | 3 | Meer info | |||
| 2965200600 | 1377 | MAIN CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 9002900200 | 1390 | COUNTERSUNK HEAD SCREW (PT-4X14) | 1 | 3 | Meer info | |||
| 2951610300 | 1391 | DELTA PT SCREW(5x20 TORX HEAD_PERFOR.) | 2 | 4 | Meer info | |||
| 2951780300 | 1398 | DELTA PT VIDA 50x26 WN 5454 HB | 1 | 4 | Meer info | |||
| 2962950100 | 1399 | NTC GASKET | 1 | 1 | Meer info | |||
| 2963210100 | 1401 | MOTOR SHAFT SEAL | 7 | 1 | Meer info | |||
| 2705810400 | 1417 | PT SCREW (3_5x14) | 1 | 2 | Meer info | |||
| 2961690100 | 1440 | ADJUSTABLE PLASTIC FOOT | 1 | 4 | Meer info | |||
| 2963180200 | 1451 | BACK COVER FELT | 12 | 1 | Meer info | |||
| 2953741500 | 1453 | SINGLE ADHESINE EPDM FOAM | 4 | 1 | Meer info | |||
| 2963090200 | 1454 | AIR GUIDING GASKET | 8 | 1 | Meer info | |||
| 2962810100 | 1455 | SIDE WALL PIN | 1 | 6 | Meer info | |||
| 2971900200 | 1457 | NTC (EPCOS_12K) | 9 | 0 | Meer info | |||
| 2971900300 | 1457 | NTC | 10 | 1 | Meer info | |||
| 2971900500 | 1457 | NTC | 8 | 0 | Meer info | |||
| 2974680200 | 1459 | WHEEL (RUBBER) | 11 | 1 | Meer info | |||
| 2987300200 | 1459 | WHEEL (RUBBER) | 11 | 1 | Meer info | |||
| 2951261000 | 1460 | POMP WATER TANK HOSE. | 6 | 1 | Meer info | |||
| 2951261200 | 1460 | POMP WATER TANK HOSE. | 4 | 1 | Meer info | |||
| 2951260800 | 1462 | POMP WATER TANK HOSE. | 5 | 1 | Meer info | |||
| 2951261100 | 1465 | POMP WATER TANK HOSE. | 6 | 1 | Meer info | |||
| 9003272000 | 1466 | PLASTIC SCREW (DIAMETER 4x10) INOX | 1 | 5 | Meer info | |||
| 100700120 | 1469 | SCREW (B4.2*9.5 DIN 7982-H) | 1 | 3 | Meer info | |||
| 2953741100 | 1471 | SINGLE ADHESINE EPDM FOAM. | 1 | 1 | Meer info | |||
| 2962390100 | 1473 | LOCK MOUTH | 1 | 1 | Meer info | |||
| 2963420100 | 1478 | WATER COLLECTOR | 1 | 1 | Meer info | |||
| 2961720300 | 1481 | COOLING AIR INFLOW RECTIFIER | 3 | 1 | Meer info | |||
| 2963240200 | 1482 | COOLING AIR INFLOW FELT | 5 | 1 | Meer info | |||
| 2963250100 | 1483 | COOLING AIR OUTFLOW FELT | 6 | 1 | Meer info | |||
| 2963590100 | 1484 | YAN DESTEK (SAG-54CM) | 6 | 1 | Meer info | |||
| 2963610100 | 1485 | SIDE SUPPORT (LEFT) | 4 | 1 | Meer info | |||
| 2974470100 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2974470700 | 1486 | SHAFT DRUM COVER SHC ALS | 3 | 0 | Meer info | |||
| 2974470300 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2962290100 | 1489 | DOWN HINGE GUIDE | 1 | 1 | Meer info | |||
| 2962310100 | 1490 | UP HINGE GUIDE | 1 | 1 | Meer info | |||
| 2962460100 | 1492 | TANK GUIDE CAP | 7 | 1 | Meer info | |||
| 2964010100 | 1495 | PANEL FLAMABILITY PART | 4 | 1 | Meer info | |||
| 9003271700 | 1497 | PLASTIC SCREW | 9 | 3 | Meer info | |||
| 2966930100 | 1540 | SMART LAMP | 16 | 1 | Meer info | |||
| 2966040100 | 1542 | CARD HOLDER (SMART-LAMP) | 4 | 1 | Meer info | |||
| 2966990100 | 1587 | RACEWAY | 5 | 2 | Meer info | |||
| 2967080100 | 1588 | RACEWAY SOCKET GUARD | 2 | 1 | Meer info | |||
| 2971900100 | 1741 | NTC | 10 | 0 | Meer info | |||
| 2970540100 | 2013 | POWER PLUG HOLDER | 2 | 1 | Meer info | |||
| 2974870200 | 4210 | INTERFERENCE FILTER | 10 | 1 | Meer info | |||
| 2002370900 | 8318 | HOSE CLAMP (Ø 16.4) | 1 | 2 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 10 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 15 | Meer info | |||
| 9003270500 | 8386 | PLASTIC SCREW (4_12) | 1 | 14 | Meer info | |||
| 9003610300 | 8392 | sheet metal screw(B4_2x9_5-perforated) | 1 | 2 | Meer info | |||
| 9003610100 | 8397 | SHEET METAL SCREW(B4_2x9_5-perforated) | 1 | 32 | Meer info | |||
| 9003860300 | 8403 | SHEET METAL SCREW | 1 | 13 | Meer info | |||
| 120800120 | 8413 | FIBERED_NUT_M6X1_DIN_985 | 1 | 2 | Meer info | |||
| 2826510200 | 8415 | DOWEL PLASTIC CLAMP | 1 | 2 | Meer info | |||
| 2963340100 | 8419 | WASHERED NUT (M6x1) | 1 | 2 | Meer info | |||
| 2951580400 | 8422 | COUNTERSUNK HEAD PT SCREW (4.5x12) | 1 | 2 | Meer info | |||
| 2971870100 | 8428 | MX10 RYSB PERFORATED SCREW | 1 | 2 | Meer info | |||
| 2951780400 | 8434 | DELTA PT SCREW | 1 | 6 | Meer info |
