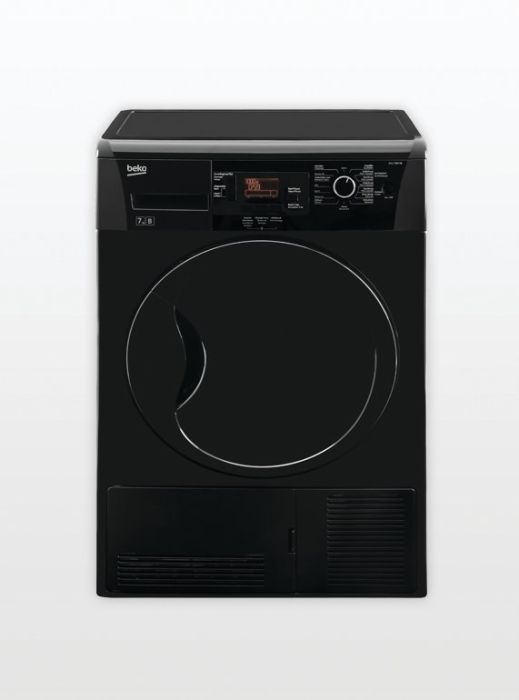

DCU7330XB CONDENSWASDROGER

Artikelnr: 114567
Referentienr: DCU7330XB
Vergelijk

Productomschrijving

7 Kg TU sensor drying DISPLAY zwart
Meer informatie
Hoogte 84.6
Breedte 59.5
Diepte 53
Gewicht (Kg) 36
Jaarlijks verbruik (kWh) 504
ArtRef DCU7330XB
AsogemID 114567
MPN 7185531700
Merk BEKO
Soort Condenswasdroger
ArtEAN 8690769387485
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2974600400 1 TOP PLATE ASSY 31 1 Meer info
2963650300 9 HANDLE 8 1 Meer info
2976900300 10 FRONT DOOR ASSEMBLY 26 1 Meer info
2962120100 12 INNER DOOR_(ARES_ARC1_WITHOUT_SWITCH) 14 1 Meer info
2962170200 14 HINGE 10 1 Meer info
2973500100 18 ADJUSTABLE PLASTIC FOOT ASSY. 2 2 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 3 Meer info
2960310347 43 USERS MANUAL (EU LANGUAGES) 8 1 Meer info
2985421800 48 DRUM ASSEMBLY 31 1 Meer info
2962470200 59 ELASTIC POLY-V BELT. 7PH 1956 13 1 Meer info
2963140200 63 DRYER MOTOR.. 31 1 Meer info
2970101400 65 HEATER ASSY 24 1 Meer info
2971602200 166 MAIN CABLE ASSEMBLY 21 1 Meer info
2970444800 169 POWER SUPPLY CORD 15 0 Meer info
2970445300 169 POWER SUPPLY CORD 15 0 Meer info
2970446900 169 POWER SUPPLY CORD 15 0 Meer info
2964170100 180 PUSH BUTTON SWITCH (ON_OFF) 8 1 Meer info
2961561002 186 ELECTRONIC PCB ASSY.(CNDU MLCD INVERTED) 30 1 Meer info
491500303 189 POLY-V 285 H 4 MA BELT 10 1 Meer info
2963749030 197 DRAWER PANEL ASS. 18 1 Meer info
2975309037 200 PANEL ASSEMBLY 31 1 Meer info
2976700500 203 PROGRAMME KNOB BUTTOM_ASSY 10 1 Meer info
2963640300 339 OUTER DOOR 16 1 Meer info
2962150100 341 LOCK HOOK 1 1 Meer info
265900012 374 OVEN LAMP 15 W-230 V 6 1 Meer info
2963580300 401 FRONT PANEL 21 1 Meer info
2963710300 468 ON OFF BUTTON (TIP02+ARC 734 MAVI) 1 1 Meer info
2827190400 481 SELECTION SWITCH 7 1 Meer info
2966980100 581 HEATER CABLE GUARD 4 1 Meer info
2705870100 583 SELF LOCKING CABLE HOLDER 1 3 Meer info
2967011100 584 DRUM LIFTER 7 2 Meer info
2960310348 631 USERS MANUAL (EU LANGUAGES) 8 1 Meer info
2962160100 632 HINGE BUSHING 1 4 Meer info
2807960400 653 CAPACITOR (ARCOTRONICS 8 uF) 11 1 Meer info
2963790100 750 PCB HOLDER 8 1 Meer info
2973800100 804 REAR DRUM TIGHTNESS PLATE ASSY 17 0 Meer info
2973800700 804 REAR DRUM TIGHTNESS PLATE ASSY 16 0 Meer info
2973801100 804 REAR DRUM TIGHTNESS PLATE ASSY 15 1 Meer info
2963540300 822 KICK PLATE - LEFT 10 1 Meer info
2972900500 826 HEATER COVER ASSY 20 1 Meer info
2972900600 826 HEATER COVER ASSY 18 0 Meer info
2962020100 827 UPPER BEAM 0 1 Meer info
2959400200 834 REAR BEARING ASSEMBLY 10 1 Meer info
2960190100 842 CABLE HOLDER 2 4 Meer info
2963820100 843 WATER TANK (UP_7KG_54CM) 16 1 Meer info
2961290200 844 DISCHARGING FUNNEL 2 1 Meer info
2963530300 845 KICK PLATE - RIGHT 9 1 Meer info
2962680100 846 CONDENSER SNAPPER 1 2 Meer info
2975700100 847 PLASTIC CHASIS ASSY 31 1 Meer info
2974940100 856 HINGE PIN HOLDER (PLASTIC) 1 2 Meer info
2963150100 857 SPRING 4 1 Meer info
2963330100 861 FRONT SELING FELT 13 1 Meer info
2962650100 865 LAMP COVER 4 1 Meer info
2962930200 877 PROCESS FAN 8 1 Meer info
2951060600 888 MICRO SWITCH 7 0 Meer info
2951060700 888 MICRO_SWITCH 8 0 Meer info
2951061000 888 MICRO_SWITCH 7 0 Meer info
2961680200 891 COOLING FAN 6 1 Meer info
2951260100 897 POMP WATER TANK HOSE. 5 1 Meer info
2961190200 906 SPECÄ°AL WASHER (8,1*17*1,5) 1 2 Meer info
2980000200 921 CONDENDER ASSY. (54CM) 31 0 Meer info
2980000100 921 CONDENDER ASSY. (54CM) 33 1 Meer info
2961961800 932 SIDE PANEL 19 2 Meer info
2954700100 985 OVERFLOW MICRO SWITCH ASSY 9 1 Meer info
2954700400 985 Micro Switch Ass. 10 1 Meer info
2962510600 1005 CONDENS PUMP 21 1 Meer info
2962510800 1005 CONDENS PUMP 18 0 Meer info
133000001 1044 WASHER 12x18x1 DIN 988.. 1 2 Meer info
160200200 1045 ZEEGER 9x1 DIN 6799 DRCS68 2 1 Meer info
2973902900 1046 REAR PANEL ASSY 23 1 Meer info
492204404 1077 PULLEY ASSY FOR SERVICE-ARES 19 1 Meer info
2963110100 1087 HOSE AND CABLE HOLDER 1 2 Meer info
2962630100 1098 FAN COVER - COOLING 6 1 Meer info
2969500300 1209 LOCK BODY ASS_(SPRING_WIRE_DIA_1_4) 8 1 Meer info
2979290100 1244 POMP COVER 7 1 Meer info
2971703502 1246 CABLE ASSEMBLY 5 1 Meer info
2960910300 1248 SILICONE GASKET 1 1 Meer info
2977904200 1249 CABLE ASSEMBLY 5 1 Meer info
2973100100 1256 SHAFT-FRONT BEARING ASSY 21 1 Meer info
2972300100 1259 FILTRE CASETTE ASSY 13 1 Meer info
2962960100 1260 OVERFLOW FLOAT 1 1 Meer info
2970020100 1271 AIR GUIDING PART 9 1 Meer info
2968300300 1279 BEARING SENSOR COVER ASSEMBLY 8 1 Meer info
2960150100 1287 RUBBER STOPPER 2 1 Meer info
2962590100 1290 DOOR GASKET 8 1 Meer info
2963120100 1295 MOTOR BRACKET CLAMP (PLASTIC) 2 2 Meer info
2963830100 1303 TANK GUIDE (TOP_54CM) 15 1 Meer info
2961390300 1306 TANK GUIDE BARRIER 5 1 Meer info
2705810300 1313 PT SCREW (3_5x8) 2 3 Meer info
2965200600 1377 MAIN CABLE ASSEMBLY 8 1 Meer info
9002900200 1390 COUNTERSUNK HEAD SCREW (PT-4X14) 1 3 Meer info
2951610300 1391 DELTA PT SCREW(5x20 TORX HEAD_PERFOR.) 2 4 Meer info
2951780300 1398 DELTA PT VIDA 50x26 WN 5454 HB 1 4 Meer info
2962950100 1399 NTC GASKET 1 1 Meer info
2963210100 1401 MOTOR SHAFT SEAL 7 1 Meer info
2705810400 1417 PT SCREW (3_5x14) 1 2 Meer info
2961690100 1440 ADJUSTABLE PLASTIC FOOT 1 4 Meer info
2963180200 1451 BACK COVER FELT 12 1 Meer info
2953741500 1453 SINGLE ADHESINE EPDM FOAM 4 1 Meer info
2963090200 1454 AIR GUIDING GASKET 8 1 Meer info
2962810100 1455 SIDE WALL PIN 1 6 Meer info
2971900200 1457 NTC (EPCOS_12K) 9 0 Meer info
2971900300 1457 NTC 10 1 Meer info
2971900500 1457 NTC 8 0 Meer info
2974680200 1459 WHEEL (RUBBER) 11 1 Meer info
2987300200 1459 WHEEL (RUBBER) 11 1 Meer info
2951261000 1460 POMP WATER TANK HOSE. 6 1 Meer info
2951261200 1460 POMP WATER TANK HOSE. 4 1 Meer info
2951260800 1462 POMP WATER TANK HOSE. 5 1 Meer info
2951261100 1465 POMP WATER TANK HOSE. 6 1 Meer info
9003272000 1466 PLASTIC SCREW (DIAMETER 4x10) INOX 1 5 Meer info
100700120 1469 SCREW (B4.2*9.5 DIN 7982-H) 1 3 Meer info
2953741100 1471 SINGLE ADHESINE EPDM FOAM. 1 1 Meer info
2962390100 1473 LOCK MOUTH 1 1 Meer info
2963420100 1478 WATER COLLECTOR 1 1 Meer info
2961720300 1481 COOLING AIR INFLOW RECTIFIER 3 1 Meer info
2963240200 1482 COOLING AIR INFLOW FELT 5 1 Meer info
2963250100 1483 COOLING AIR OUTFLOW FELT 6 1 Meer info
2963590100 1484 YAN DESTEK (SAG-54CM) 6 1 Meer info
2963610100 1485 SIDE SUPPORT (LEFT) 4 1 Meer info
2974470100 1486 SHAFT DRUM COVER 1 0 Meer info
2974470700 1486 SHAFT DRUM COVER SHC ALS 3 0 Meer info
2974470300 1486 SHAFT DRUM COVER 1 0 Meer info
2962290100 1489 DOWN HINGE GUIDE 1 1 Meer info
2962310100 1490 UP HINGE GUIDE 1 1 Meer info
2962460100 1492 TANK GUIDE CAP 7 1 Meer info
2964010100 1495 PANEL FLAMABILITY PART 4 1 Meer info
9003271700 1497 PLASTIC SCREW 9 3 Meer info
2966930100 1540 SMART LAMP 16 1 Meer info
2966040100 1542 CARD HOLDER (SMART-LAMP) 4 1 Meer info
2966990100 1587 RACEWAY 5 2 Meer info
2967080100 1588 RACEWAY SOCKET GUARD 2 1 Meer info
2971900100 1741 NTC 10 0 Meer info
2970540100 2013 POWER PLUG HOLDER 2 1 Meer info
2974870200 4210 INTERFERENCE FILTER 10 1 Meer info
9003270200 8303 PLASTIC SCREW (DIAMETER 4x18) 1 2 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 2 Meer info
100601520 8320 SHEET METAL SCREW (B4.2X13 DIN 7981-H) 1 2 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 10 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 11 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 14 Meer info
9003610300 8392 sheet metal screw(B4_2x9_5-perforated) 1 2 Meer info
9003610100 8397 SHEET METAL SCREW(B4_2x9_5-perforated) 1 32 Meer info
9003860300 8403 SHEET METAL SCREW 1 13 Meer info
120800120 8413 FIBERED_NUT_M6X1_DIN_985 1 2 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 2 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 2 Meer info
2951580400 8422 COUNTERSUNK HEAD PT SCREW (4.5x12) 1 2 Meer info
2971870100 8428 MX10 RYSB PERFORATED SCREW 1 2 Meer info
2951780400 8434 DELTA PT SCREW 1 6 Meer info
