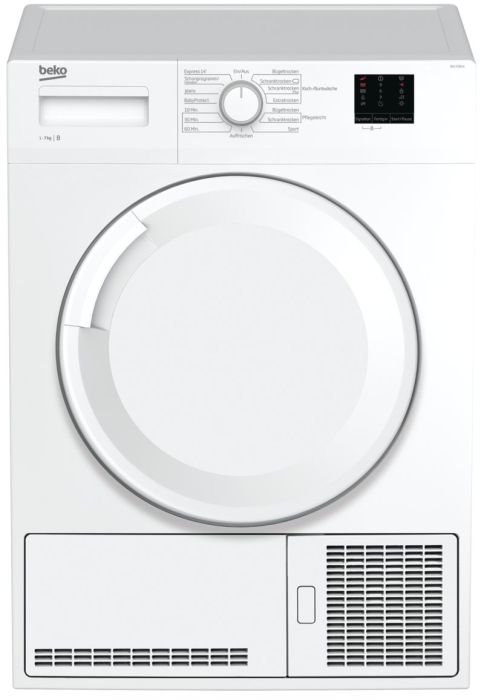

DCU720030BX CONDENSWASDROGER
Comfort
Artikelnr:
115892
Referentienr:
DCU720030BX
Aanbevolen verkoopprijs:
€ 349,99
(BTW & recupel inbegrepen)
Productomschrijving
7 Kg TU sensor drying
| Maximum drooglading (kg) | 7 |
|---|---|
| Trommel | galva |
| Capaciteit trommel (L) | 102 |
| Energieklasse | B |
| Aantal programma's | 15 |
| Automatisch drogen met sensor | |
| LED aanduiding | |
| Sensor toetsen | X LED |
| Aanduiding programmaverloop | |
| Startuitstel (u) | 3-6-9 |
| Waarschuwing voor reinigen filter | |
| Waarschuwing voor ledigen reservoir van condensor | |
| Koele eindfase | |
| Anti-kreuk fase (einde cyclus 60 min. 1 rotatie om de 5 min.) | |
| Alternatieve draairichting | |
| Instelbaar geluidssignaal aan het einde van de cyclus | |
| Reservoir voor opvang condenswater bovenaan | |
| Afneembaar bovenblad voor onderbouw | |
| Kinderbeveiliging | |
| Binnenverlichting | |
| Openingshoek deur | 150° |
| Deuropening | 39.5x32 |
| Geluidsniveau (dBA) | 65 |
| Energieverbr. (kWh) (wasgoed kastdroog) | 4.21 (1000t/m) |
| Vermogen (W) | 2.500,00 |
| Hoogte | 84.6 |
| Breedte | 58.5 |
| Diepte | 56.8 |
| Gewicht (Kg) | 33.5 |
| Jaarlijks verbruik (kWh) | 504 |
| Hoogte met verpakking | 88 |
| Breedte met verpakking | 59.7 |
| Diepte met verpakking | 58.5 |
| Gewicht VPE (Kg) | 35 |
| Bijkomende kenmerken |
|
| ArtRef | DCU720030BX |
| AsogemID | 115892 |
| MPN | 7182482570 |
| Merk | BEKO |
| Going prijs | 349,99 |
| Soort | Condenswasdroger |
| ProductLine | Comfort |
| ArtEAN | 8690842189371 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2988800100 | 1 | TOP PLATE GR. | 19 | 1 | Meer info | |||
| 2988801700 | 1 | TOP PLATE GR. | 19 | 0 | Meer info | |||
| 2977460100 | 10 | FRONT DOOR ASSY. | 21 | 1 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 1 | Meer info | |||
| 2960311665 | 43 | USERS MANUAL (EU LANGUAGES) | 8 | 1 | Meer info | |||
| 2985421700 | 48 | DRUM ASSEMBLY | 31 | 1 | Meer info | |||
| 2962470200 | 59 | ELASTIC POLY-V BELT. 7PH 1956 | 13 | 1 | Meer info | |||
| 2971420100 | 63 | Dryer Motor Group WELLING | 31 | 1 | Meer info | |||
| 2976680600 | 65 | HEATER ASSY | 24 | 0 | Meer info | |||
| 2983230100 | 65 | HEATER ASSY | 22 | 1 | Meer info | |||
| 2976633800 | 166 | MAIN CABLE ASSEMBLY (BLACK_BOX_ORION) | 23 | 1 | Meer info | |||
| 2970442600 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2970443400 | 169 | POWER SUPPLY CORD | 7 | 0 | Meer info | |||
| 2970447300 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2975792601 | 186 | ELECTRONIC_BOARD(MONO) | 31 | 1 | Meer info | |||
| 491500303 | 189 | POLY-V 285 H 4 MA BELT | 10 | 1 | Meer info | |||
| 2977319001 | 197 | DRAWER PANEL ASS. | 9 | 1 | Meer info | |||
| 2977269031 | 200 | PANEL ASSEMBLY | 19 | 1 | Meer info | |||
| 2976141700 | 203 | SELECTOR KNOB GR. | 5 | 1 | Meer info | |||
| 2977259031 | 208 | PANEL BODY. | 15 | 1 | Meer info | |||
| 2979730100 | 341 | LOCK HOOK | 1 | 1 | Meer info | |||
| 265900012 | 374 | OVEN LAMP 15 W-230 V | 6 | 1 | Meer info | |||
| 2975060100 | 401 | FRONT PANEL (BX-ABX-PLX) | 20 | 1 | Meer info | |||
| 2966280100 | 510 | KICK PLATE BUTTON | 2 | 1 | Meer info | |||
| 2962350200 | 577 | PUSH BUTTON SPRING | 1 | 1 | Meer info | |||
| 2975020100 | 581 | REAR PANEL CABLE GUIDE | 3 | 1 | Meer info | |||
| 2705870100 | 583 | SELF LOCKING CABLE HOLDER | 1 | 4 | Meer info | |||
| 2967011100 | 584 | DRUM LIFTER | 7 | 2 | Meer info | |||
| 2960311664 | 631 | USERS MANUAL (EU LANGUAGES) | 8 | 1 | Meer info | |||
| 2962160100 | 632 | HINGE BUSHING | 1 | 4 | Meer info | |||
| 2807960400 | 653 | CAPACITOR (ARCOTRONICS 8 uF) | 11 | 1 | Meer info | |||
| 2807963100 | 653 | CAPACITOR (BICAI 8 uF). | 10 | 1 | Meer info | |||
| 9003860200 | 658 | SHEET METAL SCREW(SELF WASHER) | 1 | 4 | Meer info | |||
| 2975530200 | 750 | PCB HOLDER | 9 | 1 | Meer info | |||
| 2973800100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 17 | 0 | Meer info | |||
| 2973800700 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 16 | 0 | Meer info | |||
| 2973801100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 15 | 1 | Meer info | |||
| 2968410100 | 822 | KICK PLATE-LEFT | 10 | 1 | Meer info | |||
| 2972900500 | 826 | HEATER COVER ASSY | 20 | 1 | Meer info | |||
| 2972900600 | 826 | HEATER COVER ASSY | 18 | 0 | Meer info | |||
| 2966130100 | 827 | FRONT PANEL SUPPORT BRACKET | 7 | 1 | Meer info | |||
| 2959400200 | 834 | REAR BEARING ASSEMBLY | 10 | 1 | Meer info | |||
| 2968040100 | 843 | WATER TANK | 14 | 1 | Meer info | |||
| 2961290200 | 844 | DISCHARGING FUNNEL | 2 | 1 | Meer info | |||
| 2968390100 | 845 | KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT | 8 | 1 | Meer info | |||
| 2962680100 | 846 | CONDENSER SNAPPER | 1 | 2 | Meer info | |||
| 2979640100 | 847 | PLASTIC CHASIS ASSY ECO54cm | 24 | 1 | Meer info | |||
| 2974940100 | 856 | HINGE PIN HOLDER (PLASTIC) | 1 | 1 | Meer info | |||
| 2963150100 | 857 | SPRING | 4 | 1 | Meer info | |||
| 2963330200 | 861 | FRONT SELING FELT | 14 | 0 | Meer info | |||
| 2963330500 | 861 | FRONT SELING FELT | 13 | 1 | Meer info | |||
| 2963330800 | 861 | FRONT SELING FELT | 12 | 0 | Meer info | |||
| 2962650100 | 865 | LAMP COVER | 4 | 1 | Meer info | |||
| 2962930200 | 877 | PROCESS FAN | 8 | 1 | Meer info | |||
| 2951060600 | 888 | MICRO SWITCH | 7 | 0 | Meer info | |||
| 2951060700 | 888 | MICRO_SWITCH | 8 | 0 | Meer info | |||
| 2951061000 | 888 | MICRO_SWITCH | 7 | 0 | Meer info | |||
| 2961680200 | 891 | COOLING FAN | 6 | 1 | Meer info | |||
| 2961190200 | 906 | SPECÄ°AL WASHER (8,1*17*1,5) | 1 | 2 | Meer info | |||
| 2980000200 | 921 | CONDENDER ASSY. (54CM) | 31 | 0 | Meer info | |||
| 2980000300 | 921 | CONDENDER ASSY. (54CM) | 30 | 0 | Meer info | |||
| 2980000500 | 921 | CONDENDER ASSY. (54CM) | 35 | 1 | Meer info | |||
| 2961961100 | 932 | SIDE PANEL | 19 | 2 | Meer info | |||
| 4246980100 | 970 | 4_20 PY HB ZN SCREW. | 1 | 3 | Meer info | |||
| 2954700100 | 985 | OVERFLOW MICRO SWITCH ASSY | 9 | 1 | Meer info | |||
| 2954700400 | 985 | Micro Switch Ass. | 10 | 1 | Meer info | |||
| 2962510600 | 1005 | CONDENS PUMP | 21 | 0 | Meer info | |||
| 2962510800 | 1005 | CONDENS PUMP | 18 | 1 | Meer info | |||
| 133000001 | 1044 | WASHER 12x18x1 DIN 988.. | 1 | 2 | Meer info | |||
| 160200200 | 1045 | ZEEGER 9x1 DIN 6799 DRCS68 | 2 | 1 | Meer info | |||
| 2973903000 | 1046 | REAR PANEL ASSY | 23 | 1 | Meer info | |||
| 2982820100 | 1087 | HOSE AND CABLE HOLDER OPPOSITE DIRECTION | 1 | 2 | Meer info | |||
| 2962630100 | 1098 | FAN COVER - COOLING | 6 | 1 | Meer info | |||
| 2969500300 | 1209 | LOCK BODY ASS_(SPRING_WIRE_DIA_1_4) | 8 | 1 | Meer info | |||
| 2979290100 | 1244 | POMP COVER | 7 | 1 | Meer info | |||
| 2971703502 | 1246 | CABLE ASSEMBLY | 5 | 1 | Meer info | |||
| 2960910300 | 1248 | SILICONE GASKET | 1 | 1 | Meer info | |||
| 2976623800 | 1249 | CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 2972300300 | 1259 | FILTRE CASETTE ASSY | 12 | 1 | Meer info | |||
| 2962960100 | 1260 | OVERFLOW FLOAT | 1 | 1 | Meer info | |||
| 2970020100 | 1271 | AIR GUIDING PART | 9 | 1 | Meer info | |||
| 2979680200 | 1279 | BEARING SENSOR COVER ASSEMBLY | 7 | 1 | Meer info | |||
| 2960150100 | 1287 | RUBBER STOPPER | 2 | 1 | Meer info | |||
| 2962590100 | 1290 | DOOR GASKET | 8 | 1 | Meer info | |||
| 2963120400 | 1295 | MOTOR BRACKET CLAMP (PLASTIC) | 3 | 2 | Meer info | |||
| 2968060100 | 1303 | WATER TANK CASE | 13 | 1 | Meer info | |||
| 2705810300 | 1313 | PT SCREW (3_5x8) | 2 | 2 | Meer info | |||
| 2977339013 | 1396 | BUTTON ASSEMBLY | 6 | 1 | Meer info | |||
| 2951780300 | 1398 | DELTA PT VIDA 50x26 WN 5454 HB | 1 | 4 | Meer info | |||
| 2962950100 | 1399 | NTC GASKET | 1 | 1 | Meer info | |||
| 2963210100 | 1401 | MOTOR SHAFT SEAL | 7 | 1 | Meer info | |||
| 2705810400 | 1417 | PT SCREW (3_5x14) | 1 | 2 | Meer info | |||
| 2961690100 | 1440 | ADJUSTABLE PLASTIC FOOT | 1 | 2 | Meer info | |||
| 2983410100 | 1440 | PLASTIC FOOD ASSY (2K) | 1 | 2 | Meer info | |||
| 2963180200 | 1451 | BACK COVER FELT | 12 | 1 | Meer info | |||
| 2963090200 | 1454 | AIR GUIDING GASKET | 8 | 1 | Meer info | |||
| 2975650100 | 1455 | SIDE WALL PIN | 1 | 6 | Meer info | |||
| 2971900200 | 1457 | NTC (EPCOS_12K) | 9 | 0 | Meer info | |||
| 2971900300 | 1457 | NTC | 10 | 1 | Meer info | |||
| 2971900500 | 1457 | NTC | 8 | 0 | Meer info | |||
| 2974680200 | 1459 | WHEEL (RUBBER) | 11 | 2 | Meer info | |||
| 2951261000 | 1460 | POMP WATER TANK HOSE. | 6 | 1 | Meer info | |||
| 2951261200 | 1460 | POMP WATER TANK HOSE. | 4 | 1 | Meer info | |||
| 2951260800 | 1462 | POMP WATER TANK HOSE. | 5 | 1 | Meer info | |||
| 9001230500 | 1462 | PLASTIC CLAMP | 2 | 1 | Meer info | |||
| 9003272000 | 1466 | PLASTIC SCREW (DIAMETER 4x10) INOX | 1 | 5 | Meer info | |||
| 2953741100 | 1471 | SINGLE ADHESINE EPDM FOAM. | 1 | 1 | Meer info | |||
| 2977180100 | 1472 | Button GUIDE | 4 | 1 | Meer info | |||
| 2962390100 | 1473 | LOCK MOUTH | 1 | 1 | Meer info | |||
| 2963420100 | 1478 | WATER COLLECTOR | 1 | 1 | Meer info | |||
| 2961720300 | 1481 | COOLING AIR INFLOW RECTIFIER | 3 | 1 | Meer info | |||
| 2963240200 | 1482 | COOLING AIR INFLOW FELT | 5 | 1 | Meer info | |||
| 2963250100 | 1483 | COOLING AIR OUTFLOW FELT | 6 | 1 | Meer info | |||
| 2975050100 | 1484 | SIDE SUPPORT BRACKET RIGHT (54cm) | 7 | 1 | Meer info | |||
| 2966540200 | 1485 | SIDE SUPPORT BRACKET (54cm) | 4 | 1 | Meer info | |||
| 2974470100 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2974470700 | 1486 | SHAFT DRUM COVER SHC ALS | 3 | 0 | Meer info | |||
| 2974470300 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2968370100 | 1489 | UP HINGE GUIDE_B13-HOEM-BLG15 | 1 | 1 | Meer info | |||
| 2968380100 | 1490 | DOWN HINGE GUIDE_B13-HOEM-BLG15 | 1 | 1 | Meer info | |||
| 2962340100 | 1491 | SPRING BACK BUTTON | 1 | 1 | Meer info | |||
| 2968070100 | 1492 | TANK GUIDE CAP | 5 | 0 | Meer info | |||
| 2982920100 | 1492 | TANK GUIDE CAP | 3 | 1 | Meer info | |||
| 9003271700 | 1497 | PLASTIC SCREW | 9 | 3 | Meer info | |||
| 2965090100 | 1522 | KICK PLATE BUTTON SPRING | 1 | 1 | Meer info | |||
| 2975540200 | 1568 | PCB HOLDER COVER | 9 | 1 | Meer info | |||
| 2951261400 | 1569 | POMP WATER TANK HOSE. | 3 | 1 | Meer info | |||
| 2971900100 | 1741 | NTC | 10 | 0 | Meer info | |||
| 2975193804 | 2099 | CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 2975193900 | 2100 | CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 2975210100 | 2101 | GROUNDING CLAMP | 1 | 1 | Meer info | |||
| 2975120100 | 2102 | SOCKET COVER BLACKBOX | 4 | 1 | Meer info | |||
| 2974960100 | 2103 | BLACKBOX_SMALLER | 6 | 1 | Meer info | |||
| 2953742700 | 2106 | SINGLE ADHESINE EPDM FOAM | 1 | 1 | Meer info | |||
| 2975030100 | 2108 | HEATHER SOCKET POCKET | 8 | 1 | Meer info | |||
| 2975520100 | 2112 | PROGRAMME KNOB LOCK PART | 1 | 1 | Meer info | |||
| 2976490200 | 2115 | SOCKET BOX | 2 | 1 | Meer info | |||
| 2977890100 | 2117 | CARD INSIDE GASKET | 4 | 1 | Meer info | |||
| 2975194000 | 2118 | CABLE ASSEMBLY | 4 | 1 | Meer info | |||
| 1883880600 | 4210 | EMC FILTER | 12 | 0 | Meer info | |||
| 1883880500 | 4210 | EMC FILTER | 10 | 1 | Meer info | |||
| 2002370900 | 8318 | HOSE CLAMP (Ø 16.4) | 1 | 2 | Meer info | |||
| 100601520 | 8320 | SHEET METAL SCREW (B4.2X13 DIN 7981-H) | 1 | 2 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 10 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 1 | Meer info | |||
| 9003270500 | 8386 | PLASTIC SCREW (4_12) | 1 | 16 | Meer info | |||
| 9003610300 | 8392 | sheet metal screw(B4_2x9_5-perforated) | 1 | 2 | Meer info | |||
| 9003610100 | 8397 | SHEET METAL SCREW(B4_2x9_5-perforated) | 1 | 29 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 2 | Meer info | |||
| 9003860300 | 8403 | SHEET METAL SCREW | 1 | 13 | Meer info | |||
| 120800120 | 8413 | FIBERED_NUT_M6X1_DIN_985 | 1 | 2 | Meer info | |||
| 2826510200 | 8415 | DOWEL PLASTIC CLAMP | 1 | 4 | Meer info | |||
| 2963340100 | 8419 | WASHERED NUT (M6x1) | 1 | 2 | Meer info | |||
| 2971870100 | 8428 | MX10 RYSB PERFORATED SCREW | 1 | 2 | Meer info | |||
| 2951780400 | 8434 | DELTA PT SCREW | 1 | 4 | Meer info | |||
| 2979380100 | 8436 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2979380500 | 8436 | CABLE HOLDER | 1 | 1 | Meer info |
