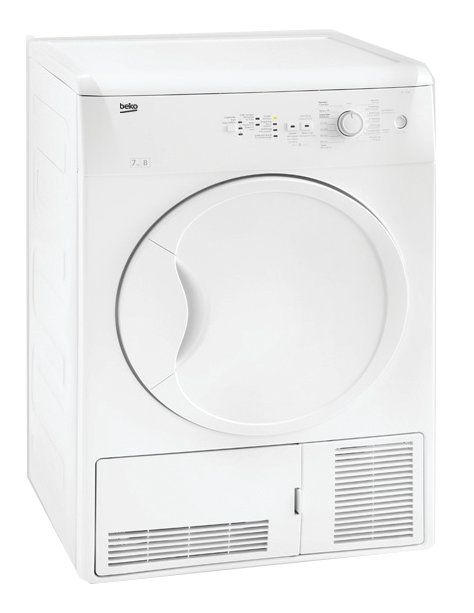

DC7230 CONDENSWASDROGER

Artikelnr: 114625

Referentienr: DC7230

Aanbevolen verkoopprijs: € 349,99 (BTW & recupel inbegrepen)

Productomschrijving

7 Kg sensor drying Time delay3

Specificaties

Meer informatie
Hoogte	84.6
Breedte	59.5
Diepte	53
Gewicht (Kg)	35
Jaarlijks verbruik (kWh)	504
ArtRef	DC7230
AsogemID	114625
MPN	7187681200
Merk	BEKO
Going prijs	349,99
Soort	Condenswasdroger
ArtEAN	8690842349690

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2974600100	1	TOP PLATE ASSY	21	1	Meer info
2963650100	9	HANDLE	7	1	Meer info
2976900100	10	FRONT DOOR ASSEMBLY	21	1	Meer info
2962120100	12	INNER DOOR_(ARES_ARC1_WITHOUT_SWITCH)	14	1	Meer info
2962170200	14	HINGE	10	1	Meer info
2973500100	18	ADJUSTABLE PLASTIC FOOT ASSY.	2	2	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	3	Meer info
2960310343	43	USERS MANUAL (EU LANGUAGES)	9	1	Meer info
2985421500	48	DRUM ASSEMBLY	30	1	Meer info
2962470200	59	ELASTIC POLY-V BELT. 7PH 1956	13	1	Meer info
2971420100	63	Dryer Motor Group WELLING	31	1	Meer info
2970100400	65	HEATER ASSY	23	1	Meer info
2994901400	166	MAIN CABLE ASSEMBLY	21	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2964170100	180	PUSH BUTTON SWITCH (ON_OFF)	8	1	Meer info
2970013101	186	ELECTRONIC PCB ASSY. (CND SENS_3K)	28	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2975209005	200	PANEL BODY	17	1	Meer info
2976702000	203	PROGRAMME KNOB BUTTOM_ASSY	5	1	Meer info
2963669005	208	PANEL BODY	13	1	Meer info
2963680100	300	FUUNCTION BUTTON	1	2	Meer info
2963640100	339	OUTER DOOR	16	1	Meer info
2962150100	341	LOCK HOOK	1	1	Meer info
265900012	374	OVEN LAMP 15 W-230 V	6	1	Meer info
2963580100	401	FRONT PANEL	31	1	Meer info
2963710100	468	ON OFF BUTTON (TIP02+ARC 734 MAVI)	1	1	Meer info
2827190400	481	SELECTION SWITCH	7	1	Meer info
2966980100	581	HEATER CABLE GUARD	4	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	3	Meer info
2960311309	631	USERS MANUAL (EU LANGUAGES)	5	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2963690100	685	TIME ADJUSTMENT BUTTON	1	1	Meer info
2961850100	750	PCB HOLDER	8	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2963540100	822	KICK PLATE - LEFT	11	1	Meer info
2972900500	826	HEATER COVER ASSY	20	1	Meer info
2972900600	826	HEATER COVER ASSY	18	0	Meer info
2962020100	827	UPPER BEAM	0	1	Meer info
2959400200	834	REAR BEARING ASSEMBLY	10	1	Meer info
2960190100	842	CABLE HOLDER	2	4	Meer info
2964470100	843	WATER TANK (BOTTOM_7KG_54CM)	18	1	Meer info
2958330200	844	WATER CAP BOTTOM	2	1	Meer info
2963530100	845	KICK PLATE - RIGHT	10	1	Meer info
2962680100	846	CONDENSER SNAPPER	1	2	Meer info
2975700200	847	PLASTIC CHASIS ASSY	30	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	2	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330400	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2963230100	873	PCB HOLDER COVER	8	1	Meer info
2962930200	877	PROCESS FAN	8	1	Meer info
2951060600	888	MICRO SWITCH	7	0	Meer info
2951060700	888	MICRO_SWITCH	8	0	Meer info
2951061000	888	MICRO_SWITCH	7	0	Meer info
2961680200	891	COOLING FAN	6	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	2	Meer info
2980000200	921	CONDENDER ASSY. (54CM)	31	0	Meer info
2980000300	921	CONDENDER ASSY. (54CM)	30	0	Meer info
2980000500	921	CONDENDER ASSY. (54CM)	35	1	Meer info
2961961100	932	SIDE PANEL	19	2	Meer info
2954700100	985	OVERFLOW MICRO SWITCH ASSY	9	1	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2971650300	1003	CAPACITOR (ARCOTRONICS 9 uF)	15	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973900600	1046	REAR PANEL ASSY	27	1	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
2962630100	1098	FAN COVER - COOLING	6	1	Meer info
2969500300	1209	LOCK BODY ASS_(SPRING_WIRE_DIA_1_4)	8	1	Meer info
2963910100	1211	LIGHT GUIDE	1	2	Meer info
2961000100	1230	WATER CONDUCTOR ASSY.	6	1	Meer info
2985800100	1231	WATER HOLDER ASSY. (GASKET)	8	1	Meer info
2953510100	1240	O-RING (17,86X2,62)	2	3	Meer info
2953520100	1241	O-RING (9 X 2)	2	2	Meer info
2979290100	1244	POMP COVER	7	1	Meer info
2971703502	1246	CABLE ASSEMBLY	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2980703800	1249	CABLE ASSEMBLY	7	1	Meer info
2973102300	1256	SHAFT-FRONT BEARING ASSY	20	1	Meer info
2972300300	1259	FILTRE CASETTE ASSY	12	1	Meer info
2972870100	1260	OVERFLOW FLOAT	5	1	Meer info
2963670100	1268	LIGHT GUIDE SET	4	1	Meer info
2970020100	1271	AIR GUIDING PART	9	1	Meer info
2968300700	1279	BEARING SENSOR COVER ASSEMBLY	9	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2962590100	1290	DOOR GASKET	8	1	Meer info
2963120100	1295	MOTOR BRACKET CLAMP (PLASTIC)	2	2	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	5	Meer info
2987800100	1314	ROUTER GROUP AIR OUTLET	10	1	Meer info
2965200600	1377	MAIN CABLE ASSEMBLY	8	1	Meer info
9002900200	1390	COUNTERSUNK HEAD SCREW (PT-4X14)	1	3	Meer info
2951610300	1391	DELTA PT SCREW(5x20 TORX HEAD_PERFOR.)	2	4	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	4	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	4	Meer info
2963180200	1451	BACK COVER FELT	12	1	Meer info
2953741500	1453	SINGLE ADHESINE EPDM FOAM	4	1	Meer info
2963090200	1454	AIR GUIDING GASKET	8	1	Meer info
2962810100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261200	1460	POMP WATER TANK HOSE.	4	1	Meer info
2962850500	1461	DRUM LIFTER	7	2	Meer info
2951260800	1462	POMP WATER TANK HOSE.	5	1	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	6	Meer info
100700120	1469	SCREW (B4.2*9.5 DIN 7982-H)	1	3	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2962390100	1473	LOCK MOUTH	1	1	Meer info
2960720100	1474	TIME DELAY PCB	8	1	Meer info
2960304600	1475	CABLE ASSEMBLY	5	1	Meer info
2963420100	1478	WATER COLLECTOR	1	1	Meer info
2963950200	1481	COLD AIR ROUTER	3	1	Meer info
2963250100	1483	COOLING AIR OUTFLOW FELT	6	1	Meer info
2963590100	1484	YAN DESTEK (SAG-54CM)	6	1	Meer info
2963610100	1485	SIDE SUPPORT (LEFT)	4	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2962290100	1489	DOWN HINGE GUIDE	1	1	Meer info
2962310100	1490	UP HINGE GUIDE	1	1	Meer info
9003271700	1497	PLASTIC SCREW	9	3	Meer info
2982700100	1504	FLUFF FILTER ASSY.	7	1	Meer info
2966990100	1587	RACEWAY	5	2	Meer info
2971900100	1741	NTC	10	0	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2972960100	2071	DUAL SOCKET COVER	4	1	Meer info
2972950100	2072	DUAL SOCKET CASING COVER	2	1	Meer info
2974870100	4210	INTERFERENCE FILTER	10	1	Meer info
9003270200	8303	PLASTIC SCREW (DIAMETER 4x18)	1	2	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	11	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	13	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	16	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	32	Meer info
9003860300	8403	SHEET METAL SCREW	1	13	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	2	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	3	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2951580400	8422	COUNTERSUNK HEAD PT SCREW (4.5x12)	1	2	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	6	Meer info
