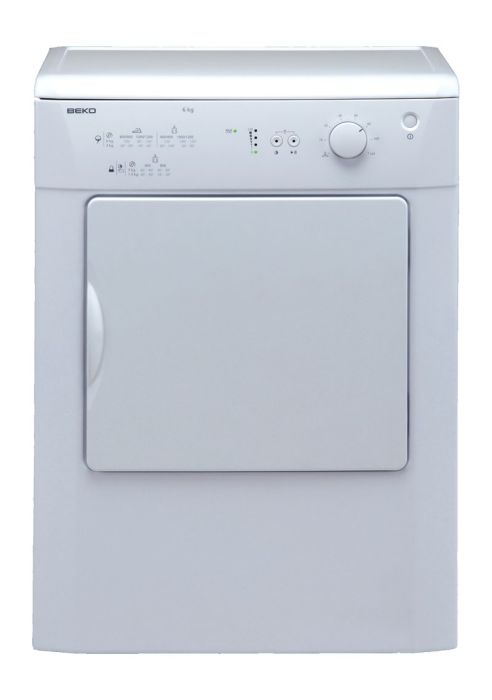

DV1160 AFVOERWASDROGER timer

Artikelnr: 114906

Referentienr: DV1160

Productomschrijving

6 kg Timer

Meer informatie
Hoogte	85
Breedte	59.5
Diepte	54
Gewicht (Kg)	29
ArtRef	DV1160
AsogemID	114906
Merk	BEKO
Soort	Afvoerwasdroger
ArtEAN	8690842180880

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2962300400	1	TOP PLATE ASSY.	21	1	Meer info
2957100100	6	CABINET ASSEMBLY	30	1	Meer info
2958100100	10	FRONT DOOR ASSEMBLY_(TERRA)	23	1	Meer info
2961900100	14	DOOR HINGE ASSEMBY	5	2	Meer info
2950480100	18	PLASTIC FOOT	2	2	Meer info
2810540891	43	USER S MANUAL (EN_DE_FR)	7	1	Meer info
2971300200	48	DRUM ASSEMBLY	30	1	Meer info
2951240100	59	ELASTIC POLY-V BELT. 6H 1930	14	1	Meer info
2953880300	63	DRYER MOTOR (TERRA 40PK EXP AV_50 Hz)	31	1	Meer info
2972200600	65	HEATER ASSY	23	1	Meer info
2957000100	166	MAIN CABLE ASSEMBLY	18	1	Meer info
2964170200	180	ON_OFF SWITCH(ROLD D FORM)	8	1	Meer info
2963161102	186	ELECTRONIC PCB ASSY.(TERRA AV BAZ_PRIME)	25	1	Meer info
2970209007	200	PANEL ASSEMBLY....	17	1	Meer info
2959800100	203	PROGRAMME KNOB BUTTON_ASSY	3	1	Meer info
2957379008	208	PANEL BODY	13	1	Meer info
2813570100	300	FUNCTION BUTTON (ARCP1)	4	2	Meer info
2957150100	341	LOCK HOOK	4	1	Meer info
2961530100	403	FIXED FOOT RUBBER	4	2	Meer info
2960120100	468	ON OFF BUTTON..	3	1	Meer info
2959000100	481	SELECTION SWITCH ASSY.	2	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	1	Meer info
2962850100	584	DRUM LIFTER (54CM_CLIP)	7	2	Meer info
2810540892	631	USER S MANUAL (FI_PT_NO_FL)	5	1	Meer info
2957590100	635	4 LED LIGHT GUIDE	2	1	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	4	Meer info
2960310282	703	USERS MANUAL (DA_SV)	2	1	Meer info
2957570100	750	MAIN BOARD CARD HOLDER	7	1	Meer info
2960020100	761	ON-OFF SWITCH ADAPTOR(DIF_PL0_PL0A)	2	1	Meer info
2817910100	820	SPECIAL SCREW	2	4	Meer info
2958300900	826	HEATER COVER ASSY.	19	1	Meer info
2959400200	834	REAR BEARING ASSEMBLY	10	1	Meer info
2961010100	857	BELT TIGHTENER SPRING	3	1	Meer info
2963320100	861	FRONT SELING FELT	12	1	Meer info
2957420100	867	BLIND COVER FOR DOOR LOCK.(ARC 1 WHITE)	2	1	Meer info
2957340100	868	BLIND COVER FOR DOOR HINGE...(TERRA)	2	2	Meer info
2957560100	873	PCB HOLDER COVER (TERRA)	7	1	Meer info
2957310200	877	DRYER FAN (4 FEEDER)	10	1	Meer info
132600001	880	PUL A 6_4x1_5 DIN 9021 INOX.	1	1	Meer info
2961270100	883	TUBE ADAPTOR..	4	1	Meer info
2967070100	884	FLEX HOSE	13	1	Meer info
2951060200	888	MICROSWITCH	7	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2952310300	910	SINGLE ADHESIVE FOAM	2	2	Meer info
2952310600	913	SINGLE ADHESIVE FOAM	6	1	Meer info
2953450300	925	THERMOSTAT ASSEMBLY	9	1	Meer info
2953450600	925	THERMOSTAT ASSEMBLY	10	0	Meer info
2951580200	970	PT SCREW (6x30)	2	6	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2957400600	1046	REAR PANEL ASS..	30	1	Meer info
492204403	1077	PULLEY ASSY FOR SERVICE-UL 3880300	18	1	Meer info
2957120100	1098	FAN HAUSING COVER	7	1	Meer info
2957880100	1199	SWITCH HOLDER	2	1	Meer info
2707730200	1202	PLASTIC SCREW (DIAMETER 3x20)	2	1	Meer info
2951580300	1204	C.SUNK HEAD PT SCREW(6X14)(ZINC_10.9xZn)	2	2	Meer info
2707730100	1205	PLASTIC SCREW 3x6	2	2	Meer info
2957700100	1209	LOCK HOUSING ASSY.	3	1	Meer info
2957610100	1211	LIGHT GUIDE	2	1	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	2	Meer info
2962200100	1219	REAR PANEL WITH PERFORATED SEAL ASSY.	20	1	Meer info
2957060100	1221	MOTOR BRACKET	8	1	Meer info
2958350100	1222	EXTENDED PIPE	4	1	Meer info
2957280200	1223	EGZOST PIPE	10	1	Meer info
2965060100	1236	FRICTIONAL BEARING	4	4	Meer info
2957110100	1252	FAN HAUSING	8	1	Meer info
2979300100	1256	DRUM BEARING HOUSING ASSY.	31	1	Meer info
2979100100	1259	FILTER_CASSETTE_ASSY.	13	1	Meer info
2957580100	1268	LIGHT GUIDE SET	2	1	Meer info
2951040100	1273	TERMINAL HOUSING	7	1	Meer info
2957470100	1278	MICROSWITCH SHAFT (TERRA)	2	1	Meer info
2965040200	1279	SENSOR CAP	4	1	Meer info
2957820100	1280	SWITCH SPRING	2	1	Meer info
2957180100	1289	SERVICE COVER(AV_PERFORATED)	5	1	Meer info
2960640100	1290	DOOR SEALING GASKET_(TERRA_AV_CND)	7	1	Meer info
2961260100	1291	HOSE ADAPTOR INTERVAL PART	3	1	Meer info
2953790100	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	1	Meer info
2953790300	1297	MOTOR BRACKET CLAMP (PLASTIC)	3	1	Meer info
9002900100	1299	COUNTERSUNK HEAD SCREW (PT-4X9_5)	2	7	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	8	Meer info
2960240100	1323	M6X12 HEXAGON P. HEAD BOLT(BEVELLED END)	2	3	Meer info
2953770600	1349	SINGLE ADHESIVE PU FOAM	3	1	Meer info
2965200100	1377	MAIN CABLE ASSEMBLY	7	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2960680100	1399	NTC-THERMOSTAT GASKET	2	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	1	Meer info
2961020100	1423	SPRING BRACKET	2	1	Meer info
2960240200	1516	M6X14 HEXAGON PART HEAD BOLT	1	1	Meer info
2972820100	4210	FILTER GROUP	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	1	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
130200530	8323	WASHER (B6 DIN127)	1	4	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	5	Meer info
9001231200	8382	PLASTIC CLAMP. 298 mm	1	3	Meer info
9002880120	8383	DOME HEAD SCREW (PT-4X6)	1	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	3	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	6	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	40	Meer info
9003270900	8399	PLASTIC SCREW	1	1	Meer info
9001590200	8410	CABLE CLAMP	1	7	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	1	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	1	Meer info
2960220300	8429	M4X10 TAPTITE SCREW	1	3	Meer info
