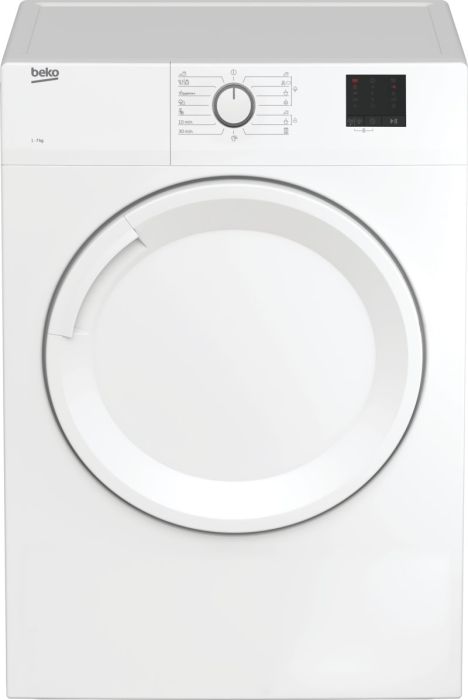

DA7011PA AFVOERWASDROGER

Active

Artikelnr: 114027

Referentienr: DA7011PA

Aanbevolen verkoopprijs: € 349,99 (BTW & recupel inbegrepen)

Productomschrijving

7 kg sensorgestuurd

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2988800100	1	TOP PLATE GR.	19	1	Meer info
2988801700	1	TOP PLATE GR.	19	0	Meer info
2977460100	10	FRONT DOOR ASSY.	21	1	Meer info
2973500500	18	PLASTIC FOOT ASSY	2	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2960312215	43	USERS MANUAL.	7	1	Meer info
2979191500	48	CAPELLA DRUM ASSEMBLY	31	1	Meer info
2951240100	59	ELASTIC POLY-V BELT. 6H 1930	14	1	Meer info
2953880400	63	DRYER MOTOR_AV_45PK_AL_50Hz	33	1	Meer info
2972200700	65	HEATER ASSY	23	1	Meer info
2981531100	166	MAIN CABLE ASSEMBLY ((BX_PRIME)	24	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2979972003	186	ELECTRONIC_BOARD(MONO)	27	1	Meer info
2977269073	200	PANEL ASSEMBLY	19	1	Meer info
2976141700	203	SELECTOR KNOB GR.	5	1	Meer info
2977259073	208	PANEL BODY.	16	1	Meer info
2979730100	341	LOCK HOOK	1	1	Meer info
2979220100	401	FRONT PANEL (BX-ABX-PLX)	21	1	Meer info
2980010200	620	BOTTOM PLATE GROUP	21	1	Meer info
2960312214	631	USERS MANUAL.	7	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	11	Meer info
2960312216	703	USERS MANUAL.	7	1	Meer info
2960312237	717	USERS MANUAL.	7	1	Meer info
2979570100	750	PCB HOLDER	10	1	Meer info
2958300900	826	HEATER COVER ASSY.	19	1	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2959400200	834	REAR BEARING ASSEMBLY	10	1	Meer info
2961010100	857	BELT TIGHTENER SPRING	3	1	Meer info
2963320100	861	FRONT SELING FELT	12	1	Meer info
2957310200	877	DRYER FAN (4 FEEDER)	10	1	Meer info
132600001	880	PUL A 6_4x1_5 DIN 9021 INOX.	1	1	Meer info
2961270100	883	TUBE ADAPTOR..	4	1	Meer info
2967070100	884	FLEX HOSE	13	1	Meer info
2951060600	888	MICRO SWITCH	7	0	Meer info
2951060700	888	MICRO_SWITCH	8	0	Meer info
2951061000	888	MICRO_SWITCH	7	0	Meer info
2960312331	901	USERS MANUAL.	5	1	Meer info
2960312626	902	USERS MANUAL (EU LANGUAGES)	0	1	Meer info
2960312441	904	USERS MANUAL.	0	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2952310300	910	SINGLE ADHESIVE FOAM	2	2	Meer info
2952310600	913	SINGLE ADHESIVE FOAM	6	1	Meer info
2961961100	932	SIDE PANEL	19	2	Meer info
2951580200	970	PT SCREW (6x30)	2	4	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2957400900	1046	REAR PANEL ASS.	24	1	Meer info
492204403	1077	PULLEY ASSY FOR SERVICE-UL 3880300	18	1	Meer info
2957120100	1098	FAN HAUSING COVER	7	1	Meer info
2969500300	1209	LOCK BODY ASS_(SPRING_WIRE_DIA_1_4)	8	1	Meer info
2962200100	1219	REAR PANEL WITH PERFORATED SEAL ASSY.	20	1	Meer info
2957060100	1221	MOTOR BRACKET	8	1	Meer info
2978550100	1223	EGZOST PIPE CAPELLA POLYAR FC	9	1	Meer info
2962610100	1236	FRICTIONAL BEARING	2	4	Meer info
2962620100	1237	FRICTIONAL BEARING COVER	2	4	Meer info
2957110100	1252	FAN HAUSING	8	1	Meer info
2962580300	1256	FRONT BEARING	21	1	Meer info
2972300100	1259	FILTRE CASETTE ASSY	13	1	Meer info
2962560300	1279	BEARING SENSOR COVER	9	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2962590100	1290	DOOR GASKET	8	1	Meer info
2961260100	1291	HOSE ADAPTOR INTERVAL PART	3	1	Meer info
2953790500	1296	MOTOR BRACKET CLAMP (PLASTIC)	5	1	Meer info
2953790700	1296	MOTOR BRACKET CLAMP (PLASTIC)	5	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	2	Meer info
2977339015	1396	BUTTON ASSEMBLY	6	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	4	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2961690500	1440	PLASTIC FOOT	1	4	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2967010900	1461	DRUM LIFTER	6	2	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	4	Meer info
2952311000	1468	SINGLE ADHESIVE FOAM	1	1	Meer info
100700120	1469	SCREW (B4.2*9.5 DIN 7982-H)	1	2	Meer info
2952311100	1470	SINGLE ADHESIVE FOAM	1	1	Meer info
2962390100	1473	LOCK MOUTH	1	1	Meer info
2977300300	1476	AIR CHANNEL ASSY	13	1	Meer info
2966760100	1484	SIDE SUPPORT BRACKET RIGHT (54cm)	6	1	Meer info
2966540200	1485	SIDE SUPPORT BRACKET (54cm)	4	1	Meer info
2975540200	1568	PCB HOLDER COVER	9	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2978459019	2053	PC INLAY_UA	10	1	Meer info
2975520100	2112	PROGRAMME KNOB LOCK PART	1	1	Meer info
2976490200	2115	SOCKET BOX	2	1	Meer info
2982790100	2150	POWER KLEMENS	7	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	1	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	5	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	7	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	53	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	1	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	7	Meer info
2960220300	8429	M4X10 TAPTITE SCREW	1	3	Meer info

Documenten

Productfiche (427.75 kB)

CE attest (129.00 kB)

Mode d'emploi (2.62 MB)
