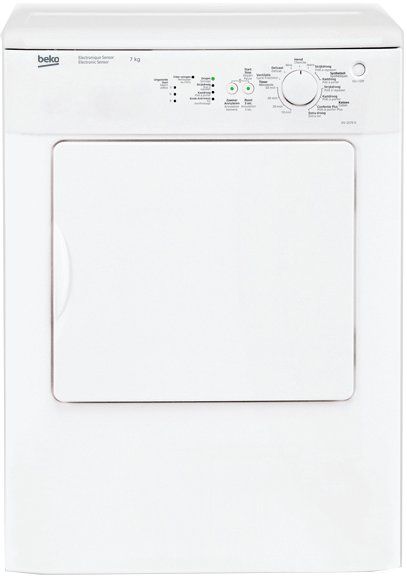

DV2570X AFVOERWASDROGER

Artikelnr: 115099

Referentienr: DV2570X

Productomschrijving

7 Kg inox trommel + sensor drying Time delay3/6/9 u

Meer informatie
Hoogte	85
Breedte	59.5
Diepte	54
Gewicht (Kg)	29
Jaarlijks verbruik (kWh)	514
ArtRef	DV2570X
AsogemID	115099
MPN	7186481200
Merk	BEKO
Soort	Afvoerwasdroger
ArtEAN	8690842313684

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2962300400	1	TOP PLATE ASSY.	21	1	Meer info
2957100100	6	CABINET ASSEMBLY	30	1	Meer info
2958100100	10	FRONT DOOR ASSEMBLY_(TERRA)	23	1	Meer info
2961900100	14	DOOR HINGE ASSEMBY	5	2	Meer info
2950480100	18	PLASTIC FOOT	2	2	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2960310158	43	USERS MANUAL (EU LANGUAGES)	5	1	Meer info
2971300700	48	DRUM ASSEMBLY	33	1	Meer info
2951240100	59	ELASTIC POLY-V BELT. 6H 1930	14	1	Meer info
2953880300	63	DRYER MOTOR (TERRA 40PK EXP AV_50 Hz)	31	1	Meer info
2957501200	65	HEATER ASSY	25	1	Meer info
2957002400	166	MAIN CABLE ASSEMBLY	19	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2964170200	180	ON_OFF SWITCH(ROLD D FORM)	8	1	Meer info
2963281405	186	ELECTRONIC PCB ASSY. (AV SENS_3K)	29	1	Meer info
2970209047	200	PANEL ASSEMBLY.....	13	1	Meer info
2959800300	203	PROGRAMME KNOB BUTTON_ASSY	3	1	Meer info
2957379037	208	PANEL BODY.	12	1	Meer info
2813570100	300	FUNCTION BUTTON (ARCP1)	4	2	Meer info
2957150100	341	LOCK HOOK	4	1	Meer info
2961530100	403	FIXED FOOT RUBBER	4	2	Meer info
2960120100	468	ON OFF BUTTON..	3	1	Meer info
2827190400	481	SELECTION SWITCH	7	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	4	Meer info
2967010100	584	DRUM LIFTER	7	2	Meer info
2960311347	631	USERS MANUAL (EU LANGUAGES)	6	1	Meer info
2957590100	635	4 LED LIGHT GUIDE	2	1	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	4	Meer info
2960620100	750	MAIN BOARD CARD HOLDER (3-6-9)	7	1	Meer info
2960020100	761	ON-OFF SWITCH ADAPTOR(DIF_PL0_PL0A)	2	1	Meer info
2817910100	820	SPECIAL SCREW	2	4	Meer info
2958300500	826	HEATER COVER ASSY.(TERRA_AV_GAL. IK)	19	1	Meer info
2959400200	834	REAR BEARING ASSEMBLY	10	1	Meer info
2961010100	857	BELT TIGHTENER SPRING	3	1	Meer info
2963320100	861	FRONT SELING FELT	12	1	Meer info
2957420100	867	BLIND COVER FOR DOOR LOCK.(ARC 1 WHITE)	2	1	Meer info
2957340100	868	BLIND COVER FOR DOOR HINGE...(TERRA)	2	2	Meer info
2960630100	873	PCB HOLDER COVER (TERRA SENS_3-6-9)	6	1	Meer info
2957310200	877	DRYER FAN (4 FEEDER)	10	1	Meer info
132600001	880	PUL A 6_4x1_5 DIN 9021 INOX.	1	1	Meer info
2961270100	883	TUBE ADAPTOR..	4	1	Meer info
2967070100	884	FLEX HOSE	13	1	Meer info
2951060200	888	MICROSWITCH	7	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2952310300	910	SINGLE ADHESIVE FOAM	2	2	Meer info
2952310600	913	SINGLE ADHESIVE FOAM	6	1	Meer info
2950291100	925	DRYER NTC	13	1	Meer info
2951580200	970	PT SCREW (6x30)	2	6	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2957400700	1046	REAR PANEL ASS..	23	1	Meer info
492204403	1077	PULLEY ASSY FOR SERVICE-UL 3880300	18	1	Meer info
2957120100	1098	FAN HAUSING COVER	7	1	Meer info
2707730200	1202	PLASTIC SCREW (DIAMETER 3x20)	2	1	Meer info
2951580300	1204	C.SUNK HEAD PT SCREW(6X14)(ZINC_10.9xZn)	2	2	Meer info
2707730100	1205	PLASTIC SCREW 3x6	2	2	Meer info
2957700100	1209	LOCK HOUSING ASSY.	3	1	Meer info
2957610100	1211	LIGHT GUIDE	2	1	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	2	Meer info
2962200100	1219	REAR PANEL WITH PERFORATED SEAL ASSY.	20	1	Meer info
2957060100	1221	MOTOR BRACKET	8	1	Meer info
2958350100	1222	EXTENDED PIPE	4	1	Meer info
2957280200	1223	EGZOST PIPE	10	1	Meer info
2965060100	1236	FRICTIONAL BEARING	4	4	Meer info
2960304500	1246	CABLE ASSEMBLY	5	1	Meer info
2957110100	1252	FAN HAUSING	8	1	Meer info
2979300300	1256	DRUM BEARING HOUSING ASSY.	29	1	Meer info
2979100100	1259	FILTER_CASSETTE_ASSY.	13	1	Meer info
2957580100	1268	LIGHT GUIDE SET	2	1	Meer info
2957470100	1278	MICROSWITCH SHAFT (TERRA)	2	1	Meer info
2979400100	1279	SENSOR CAP ASSY.	8	1	Meer info
2957820100	1280	SWITCH SPRING	2	1	Meer info
2957180100	1289	SERVICE COVER(AV_PERFORATED)	5	1	Meer info
2960640100	1290	DOOR SEALING GASKET_(TERRA_AV_CND)	7	1	Meer info
2961260100	1291	HOSE ADAPTOR INTERVAL PART	3	1	Meer info
2953790100	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	1	Meer info
2953790300	1297	MOTOR BRACKET CLAMP (PLASTIC)	3	1	Meer info
9002900100	1299	COUNTERSUNK HEAD SCREW (PT-4X9_5)	2	7	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	10	Meer info
2960240100	1323	M6X12 HEXAGON P. HEAD BOLT(BEVELLED END)	2	3	Meer info
2953770600	1349	SINGLE ADHESIVE PU FOAM	3	1	Meer info
2965200100	1377	MAIN CABLE ASSEMBLY	7	1	Meer info
2965400100	1389	LIGHT GUIDE SET ASSY. (3-6-9 _ WHITE)	10	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2960680100	1399	NTC-THERMOSTAT GASKET	2	1	Meer info
2961020100	1423	SPRING BRACKET	2	1	Meer info
2960720100	1474	TIME DELAY PCB	8	1	Meer info
2960240200	1516	M6X14 HEXAGON PART HEAD BOLT	1	1	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2972820100	4210	FILTER GROUP	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	1	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
130200530	8323	WASHER (B6 DIN127)	1	4	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	5	Meer info
9001231200	8382	PLASTIC CLAMP. 298 mm	1	3	Meer info
9002880120	8383	DOME HEAD SCREW (PT-4X6)	1	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	6	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	3	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	4	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	38	Meer info
9003270900	8399	PLASTIC SCREW	1	1	Meer info
9001590200	8410	CABLE CLAMP	1	2	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	1	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	3	Meer info
2960220300	8429	M4X10 TAPTITE SCREW	1	3	Meer info
