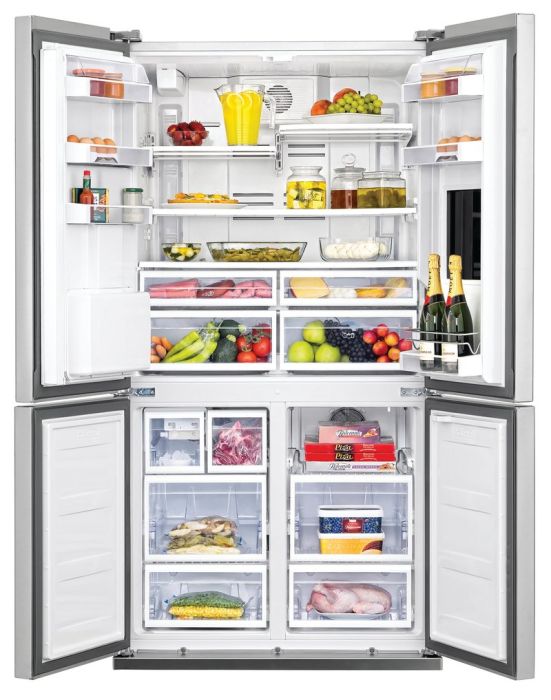

main product photo

GNE134621X 4 DEURS SIDE BY SIDE NO FROST INOX

Artikelnr: 114418
Referentienr: GNE134621X
Vergelijk

Productomschrijving

**** No Frost SBS, 4 deur 380/155 L
Meer informatie
Gewicht (Kg) 131
Hoogte met verpakking 193.2
Breedte met verpakking 98.9
Diepte met verpakking 77.4
Gewicht VPE (Kg) 136.5
ArtRef GNE134621X
AsogemID 114418
MPN 7250548793
Merk BEKO
Soort Koelkast 3 deuren of meer
ArtEAN 8690842859564
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 6 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4810690100 0 M4 WASHER 1 1 Meer info
4823280100 0 ICEBOX SENSOR COVER 1 1 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 1 Meer info
4391660285 0 FAN MOTOR_BLDC_FDQC28AL2C_PANASONIC 26 0 Meer info
4809560200 0 FAN BLADE(NF-CCW-100MM_3.17I) 6 2 Meer info
4834220185 0 INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) 5 0 Meer info
4847060400 0 MIDDLE SECTION CAP 1 3 Meer info
4847060100 0 MIDDLE SECTION CAP 1 1 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
4362090500 0 FAN GROUP 27 0 Meer info
4862440300 0 UPPER HINGE COVER LEFT 4D 4 1 Meer info
4212400285 0 INTERIOR LIGHT SWITCH (NORMALLY CLOSE-P1 3 0 Meer info
4834240185 0 INTERIOR LIGHT+FAN SWITCH 5 0 Meer info
4094920285 0 INTERIOR LIGHT+FAN SWITCH 6 2 Meer info
4212410285 0 INTERIOR LIGHT+FAN SWITCH 8 0 Meer info
4860610100 0 MULTIFLOW COVER DFFUSER 6 1 Meer info
4366420100 0 MIDDLE HINGE GROUP 11 1 Meer info
4882710100 0 FAN BLADE(NF-CCW-100MM) 2 0 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4836130485 0 BLDC FAN MOTOR (EBM PAST)_RAST5 25 0 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4860600100 0 MULTIFLOW COVER 15 1 Meer info
4891810900 0 WATER DRAN HOSE WTH ADAPTER 5 1 Meer info
4362090600 0 FAN GROUP 25 1 Meer info
4861280100 0 SBS 4D DID HINGE COVER 5 2 Meer info
4861220100 0 4D HINGE SPRING 4 1 Meer info
4860620200 0 COVER 1 1 Meer info
4389341100 0 G92610NE_DOOR SHELF 12 1 Meer info
4366581000 0 CRISPER TOP COVER GROUP 20 1 Meer info
4894980100 0 FAN MOTOR 23 0 Meer info
4366410200 14 UPPER HINGE GROUP 9 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4243121000 19 DOUBLE ENTRY DRAYER 9 1 Meer info
4861940400 20 PLINTH 19 1 Meer info
5256905011 30 COMPRESSOR (VNTZ165MT 220V)(INVERTER) 37 1 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4133843100 38 POWER CORD GROUP 12 1 Meer info
4810520100 51 EVAP. COVER STOPPER 1 1 Meer info
4860620100 70 COVER 1 1 Meer info
5645510500 81 KIK ELECTRONIC CARD GROUP 31 1 Meer info
4862440400 110 UPPER HINGE COVER RIGHT 4D 4 1 Meer info
4215790100 125 CHARGING TUBE 4 1 Meer info
4810930100 147 PT SCREW (2.5_14) 1 4 Meer info
4872890100 154 CABLE HOLDER 1 3 Meer info
4889560100 181 SELENOID CONNECTING TUBE 7 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4862610600 208 DOOR SHELF _ SEFFAF 97 0 2 Meer info
5786590200 211 BEKO LOGO 7 1 Meer info
5711160300 218 EGG TRAY (GRUNDIG_ARC P1_6PCS) 4 2 Meer info
4232290100 219 BOTTLE_HOLDER 4 1 Meer info
4049961000 227 HANDLE SCREW COVER_RAL 7037 1 8 Meer info
5752390100 232 PLASTIC STOPPER 2 2 Meer info
5751460100 233 PLASTIC STOPPER 2 2 Meer info
4200510100 235 DRAWER STOPPER 1 1 Meer info
4049970300 237 HANDLE SCREW 1 1 Meer info
4227980600 250 MIDDLE HINGE HOUSING 1 2 Meer info
5958270100 251 DOOR GASKET GROUP 12 2 Meer info
4362162700 252 DOOR GASKET GROUP 14 2 Meer info
4389341200 258 G92610NE_DOOR SHELF 13 4 Meer info
4842110200 279 TAP ADAPTER GASKET 1 1 Meer info
4863690100 299 ICE SCOOP 1 1 Meer info
4823270100 300 ICEBOX 5 1 Meer info
4869350100 309 WIRE SHELF 9 2 Meer info
4365732000 311 CRISPER GROUP 19 2 Meer info
4872930100 323 DAMPER 15 1 Meer info
4365790100 344 RAIL GROUP 8 2 Meer info
4365800100 345 RAIL GROUP 8 2 Meer info
5751380100 348 METAL STOPPER 3 2 Meer info
5805420100 357 m6 compressor screw 2 3 Meer info
4309291500 361 CABLE ASSEMBLY 8 1 Meer info
4365770100 366 RAIL GROUP 10 4 Meer info
4365780100 367 RAIL GROUP 10 4 Meer info
5540720600 533 INVERTER COVER 5 1 Meer info
4366420200 601 MIDDLE HINGE GROUP 11 1 Meer info
4366430100 606 BOTTOM HINGE GROUP 8 1 Meer info
4366430200 607 BOTTOM HINGE GROUP 8 1 Meer info
5752030100 618 SCREW (M5_16) 0 6 Meer info
5746750100 630 HOUSING FOR THE ROTATING MIDDLE TRAVERSE 4 1 Meer info
4862780100 639 FILTER COVER _ SBS4K 1 1 Meer info
5817470100 650 BEKO-VOLTAS INVERTER LOGO 9 1 Meer info
4551680100 655 SENSOR FIXING PART 1 2 Meer info
4842680100 712 HEATER SPRING (FRONT) 0 4 Meer info
4866210185 715 EVAPORATOR HEATER 13 2 Meer info
4842740100 718 HEATER HOLDER SPRING(BACK) 1 4 Meer info
4834660400 722 MOTOR HOUSE SUPPORT 24 0 Meer info
4249690100 723 FAN MOTOR FRONT BACK COVER 5 2 Meer info
5795380200 724 FAN MOTOR_AC-DC_SPG 25 3 Meer info
4385910100 730 VENTILATION SPACER GROUP 4 1 Meer info
4867890100 745 RAIL 3 1 Meer info
4365810100 755 WHEEL GROUP 1 16 Meer info
4919820100 771 THERMAL INSURANCE 12 2 Meer info
4385620185 771 THERMAL INSURANCE 13 0 Meer info
4344740285 778 SENSOR GR_ICE MAKER SBS 10 1 Meer info
4863010100 783 JPN HOLDER PIN 1 4 Meer info
4390000385 784 CONTROL BOARD GROUP 32 1 Meer info
4351910185 793 LED POWER BOARD 5V_2A 20 1 Meer info
4384390300 804 MULTIFLOW COVER GROUP 21 1 Meer info
4382830100 808 CHASIS FOR ICEMATIC_FRZ 13 1 Meer info
4387790700 827 MAIN BOARD COVER GROUP 13 1 Meer info
4333570400 831 BACK COVER GROUP 19 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4921590500 838 DOOR SHELF 10 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 1 Meer info
5715970100 857 SENSOR HOUSING COVER 2 3 Meer info
4802300300 858 WIRE FAN PROTECTOR 13 2 Meer info
4864410300 876 HANDLE FASTENER INNER 10 8 Meer info
4867340185 880 DRAIN HEATER 12 2 Meer info
4364650185 881 FINNED EVAPORATOR GROUP 22 1 Meer info
4841320200 955 SPIRAL FORM SCREW - M5x18 CONLOK 1 20 Meer info
4228060500 960 PHOTOCATALYST FILTER 5 1 Meer info
4362022900 966 DOOR ASSY_FRZ_LEFT 44 1 Meer info
4305894800 973 FAN GROUP 26 0 Meer info
4305896600 973 FAN GROUP 25 2 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 1 Meer info
4861510200 987 SLDNG SHELF SUPPORT 5 1 Meer info
4861510100 988 SLDNG SHELF SUPPORT 5 1 Meer info
9000130400 995 RUBBER HOLDER 1 1 Meer info
9000130300 995 RUBBER HOLDER 1 1 Meer info
4867370100 1003 SUPPORTIVE WIRE 8 1 Meer info
4365722000 1008 ZERO DEGREE GROUP 0 2 Meer info
4339950200 1029 WATER TANK SBS 4D 16 1 Meer info
5940941700 1074 INVERTER GROUP_KIK_G08 35 1 Meer info
4872210100 1088 FREEZER WIRE SHELF 13 1 Meer info
4365540100 1094 SLIDING SHELF GROUP 18 2 Meer info
4364660185 1101 FINNED EVAPORATOR GROUP 22 1 Meer info
4384370100 1104 EVAPORATOR COVER GR._FRZ 18 1 Meer info
4317995200 1124 IONIZER 15 1 Meer info
4317990200 1124 IONIZER 15 0 Meer info
4317995400 1124 IONIZER 15 0 Meer info
4317990400 1124 IONIZER 15 0 Meer info
4362700185 1124 IONIZER GROUP 17 1 Meer info
4366410100 1142 UPPER HINGE GROUP 10 1 Meer info
4888320100 1164 BLUE_LIGHT_COVER_BLUE 4 2 Meer info
4867070100 1167 WATER OUTLET MOUTH 1 1 Meer info
4871050100 1175 WATER TANK DECORATIVE COVER 11 1 Meer info
5945310200 1181 WATER VALVE GROUP 27 1 Meer info
4346600285 1181 WATER VALVE GROUP 25 0 Meer info
5910100300 1184 FE_HEATED_WATER_PIPE_GR 16 1 Meer info
4823800100 1186 ICEBOX TOP BODY 8 1 Meer info
4822980100 1187 ICE MOTOR FIXING RUBBER 1 1 Meer info
4827350100 1188 ICEMATIC MOTOR 26 1 Meer info
5799890100 1188 ICE CUBE MAKER (SBS) 19 0 Meer info
4863820100 1189 ICE MAKER LEVEL ARM 8 1 Meer info
4823290100 1190 INSULATING PART OF ICE CUBE TRAY SENSOR_ 4 1 Meer info
4389350100 1192 BY_PASS COVER GROUP 4 1 Meer info
4874970100 1193 FILTER HEAD _SBS_4K 25 1 Meer info
4832650700 1195 WATER PIPE_SBS_VALVE_MAIN SUPPLY 8 1 Meer info
4869530100 1204 WATER HOSE HOLDER (BACK WALL) 1 3 Meer info
4819430200 1204 SBS PIPE CLAMP 2 3 Meer info
4842100100 1205 TAP ADAPTER UNION 1 1 Meer info
4346640100 1206 TAP CONNECTION KIT GROUP 20 1 Meer info
4365910400 1211 GLASS SHELF GROUP 18 2 Meer info
4903740100 1232 led card 16 4 Meer info
4352940285 1232 ILLUMINATING MODULE 19 4 Meer info
4399330185 1232 POWER LED BOARD_SINGLE LED_SAMSUNG 18 0 Meer info
4816510100 1264 MICROSWITCH (CHERRY D451 V1KD) 8 1 Meer info
4391601400 1268 DOOR GASKET GROUP 12 1 Meer info
4827780100 1272 ILLUMINATING COVER 7 2 Meer info
4399871800 1315 ICEMATC DRAWER GROUP 13 1 Meer info
4861490100 1326 SLDNG SHELF SUPPORT 6 1 Meer info
4365760100 1338 RAIL GROUP 9 2 Meer info
4832650800 1350 WATER HOSE SBS (VALVE_FILTER) 7 1 Meer info
4832650900 1352 WATER HOSE SBS (FILTER_VALVE) 4 2 Meer info
4346650400 1360 WATER SYSTEM KIT GROUP 27 1 Meer info
4842120100 1361 HOSE FILTERSBS-V3 9 1 Meer info
4362013100 1388 DOOR ASSY FRZ_ RIGHT 31 1 Meer info
4859940185 1389 MOTOR VALVE _ 2 OUTLET 24 0 Meer info
4846940200 1390 STEEL SUPPORT 8 0 Meer info
4386210100 1392 SBS HAB GASKET GROUP 8 1 Meer info
4862320300 1393 PARTITION SPRING 1 2 Meer info
4385140100 1394 ROTATING MIDDLE TRAVERSE 22 1 Meer info
4862400200 1396 HAB BOTTOM COVER 21 1 Meer info
4862340100 1397 SLIDING MID-FLANGE PIN 1 1 Meer info
4834670185 1403 BLUE LIGHT LED CARD (HUALIAN) 11 2 Meer info
4386671500 1406 FF DOOR ASSY LEFT BEKO 4D WITH PU 51 1 Meer info
4388542100 1407 FF DOOR ASSY RIGHT 51 1 Meer info
4877120100 1409 FILTER COVER 4K SBS 6 1 Meer info
4872910100 1410 LOCK MECHANISM 15 1 Meer info
4861320100 1411 DID LOCK COVER 4 1 Meer info
4861300100 1412 SERVICE COVER 7 2 Meer info
4861240100 1413 DID HINGE PIN 11 1 Meer info
4861230100 1414 DID COVERED PIN 5 1 Meer info
4399871500 1415 ICEMATC DRAWER GROUP 15 1 Meer info
4854830100 1417 WATER VALVE SPRING 2 4 Meer info
4854830200 1418 WATER VALVE SPRING 3 3 Meer info
4366590100 1421 EVAPORATOR COVER GR._JOKER 19 1 Meer info
4382690700 1422 HANDLE GROUP 24 2 Meer info
4382690800 1423 HANDLE GROUP 23 2 Meer info
4389190100 1424 PUSH BUTTON GROUP 7 1 Meer info
4867220500 1425 WATER DISPENSER DRIP TRAY 5 1 Meer info
4867210500 1426 WATER DISPENSER RESERVOIR BODY 15 1 Meer info
4388910185 1427 DISPLAY GROUP 29 1 Meer info
4389640900 1428 DOOR IN DOOR WITH PU 34 1 Meer info
4869500100 1430 WATER FILTER HOLDER 1 1 Meer info
4386130100 1434 ICEBOX_GROUP 28 1 Meer info
4867480100 1435 STEEL SUPPORT_U 6 0 Meer info
4832651000 1436 WATER HOSE (VALVE_WATER DISPENSER) 7 1 Meer info
4386140100 1440 ICEBOX_GROUP 24 1 Meer info
4365930400 1441 GLASS SHELF GROUP WITH STAMPING 14 2 Meer info
4365920400 1441 GLASS SHELF GROUP 18 2 Meer info
4861670100 1442 CRISPER FRAME 8 2 Meer info
4861690100 1443 ZERO DEGREE FRAME 8 2 Meer info
4861750100 1502 DRAWER_FRAME 10 2 Meer info
4385570600 1503 DRAWER GROUP 0 2 Meer info
4861730100 1504 DRAWER_FRAME 8 2 Meer info
4385560600 1505 DRAWER ASSY._BIG_4K 0 2 Meer info
4857690100 1514 QUICK FIT CONNECTOR 11 2 Meer info
4874960100 1518 WATER FILTER 25 1 Meer info
4862700300 1576 PLASTIC_STOPPER 1 2 Meer info
4862700400 1577 PLASTIC_STOPPER 1 2 Meer info
4862510300 1578 SLINDING PIN SPRING 3 4 Meer info
5752420200 1580 METAL STOPPER 3 2 Meer info
5700140400 1643 MAGNET COVER RAL7039 1 2 Meer info
4882640500 1723 SELENOID VALVE SILICONE 13 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 2 Meer info
4855590100 1822 FRONT BACK COVER_D70540N 6 1 Meer info
Mode d'emploi (3.24 MB)
Handleiding (3.24 MB)
Accessoires
