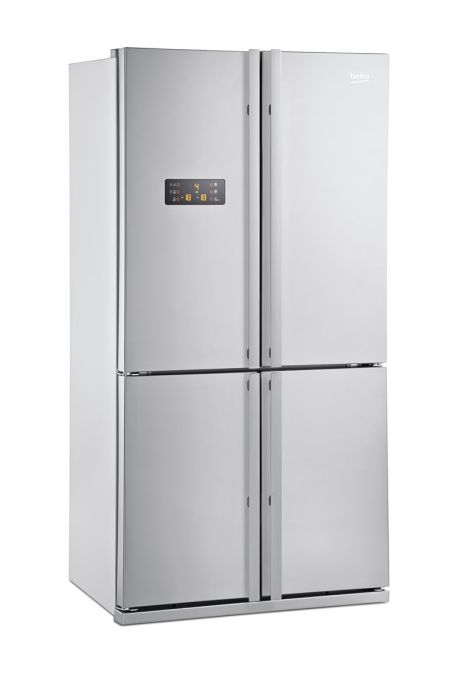

GNE114632X 4 DEURS SIDE BY SIDE NO FROST INOX

Artikelnr: 114373
Referentienr: GNE114632X
Vergelijk

Productomschrijving

**** No Frost SBS, 4 deur 380/155 L
Meer informatie
Gewicht (Kg) 125
ArtRef GNE114632X
AsogemID 114373
MPN 7271248682
Merk BEKO
Soort Koelkast 3 deuren of meer
ArtEAN 8690842032134
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 6 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4810690100 0 M4 WASHER 1 1 Meer info
4823280100 0 ICEBOX SENSOR COVER 1 1 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 1 Meer info
4391660285 0 FAN MOTOR_BLDC_FDQC28AL2C_PANASONIC 26 0 Meer info
4809560200 0 FAN BLADE(NF-CCW-100MM_3.17I) 6 2 Meer info
4834220185 0 INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) 5 0 Meer info
4847060400 0 MIDDLE SECTION CAP 1 3 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
4362090500 0 FAN GROUP 27 0 Meer info
4862440300 0 UPPER HINGE COVER LEFT 4D 4 1 Meer info
4212400285 0 INTERIOR LIGHT SWITCH (NORMALLY CLOSE-P1 3 0 Meer info
4834240185 0 INTERIOR LIGHT+FAN SWITCH 5 0 Meer info
4094920285 0 INTERIOR LIGHT+FAN SWITCH 6 2 Meer info
4212410285 0 INTERIOR LIGHT+FAN SWITCH 8 0 Meer info
4863870200 0 DOOR SHELF 9 8 Meer info
4860610100 0 MULTIFLOW COVER DFFUSER 6 1 Meer info
4366580300 0 CRISPER TOP COVER GROUP 23 1 Meer info
4366420100 0 MIDDLE HINGE GROUP 11 1 Meer info
4882710100 0 FAN BLADE(NF-CCW-100MM) 2 0 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4836130485 0 BLDC FAN MOTOR (EBM PAST)_RAST5 25 0 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4860600100 0 MULTIFLOW COVER 15 1 Meer info
4386110200 0 JPN TANK CHASSIS GROUP 25 1 Meer info
4386110100 0 JPN TANK CHASSIS GROUP 25 0 Meer info
4365000400 0 COMMON 31 1 Meer info
4891810900 0 WATER DRAN HOSE WTH ADAPTER 5 1 Meer info
4362090600 0 FAN GROUP 25 1 Meer info
4366410200 14 UPPER HINGE GROUP 9 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4243121000 19 DOUBLE ENTRY DRAYER 9 1 Meer info
4861940400 20 PLINTH 19 1 Meer info
4151230500 30 VCC COMPRESSOR (EMBRACO_VEGZ11C) 46 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 4 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4298920000 34 WASHER_LINE_2001 1 4 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
5789900200 81 VCC INVERTER PFC (VEGZ11C_230V_50Hz) 38 1 Meer info
4862440400 110 UPPER HINGE COVER RIGHT 4D 4 1 Meer info
4215790500 125 CHARGING TUBE 4 1 Meer info
4872890100 154 CABLE HOLDER 1 3 Meer info
4889560100 181 SELENOID CONNECTING TUBE 7 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4862610100 208 DAIRY COMPARTMENT COVER 7 2 Meer info
5737560100 211 LOGO 7 1 Meer info
5711160300 218 EGG TRAY (GRUNDIG_ARC P1_6PCS) 4 2 Meer info
4232290100 219 BOTTLE_HOLDER 4 2 Meer info
4049961000 227 HANDLE SCREW COVER_RAL 7037 1 8 Meer info
5752390100 232 PLASTIC STOPPER 2 2 Meer info
5751460100 233 PLASTIC STOPPER 2 2 Meer info
4227980600 250 MIDDLE HINGE HOUSING 1 2 Meer info
5958270100 251 DOOR GASKET GROUP 12 2 Meer info
4362162700 252 DOOR GASKET GROUP 14 2 Meer info
4863690100 299 ICE SCOOP 1 1 Meer info
4823270100 300 ICEBOX 5 1 Meer info
4869350100 309 WIRE SHELF 9 2 Meer info
4387770100 327 DRAWER GROUP 16 1 Meer info
4365790100 344 RAIL GROUP 8 2 Meer info
4365800100 345 RAIL GROUP 8 2 Meer info
5751380100 348 METAL STOPPER 3 2 Meer info
4365770100 366 RAIL GROUP 10 3 Meer info
4365780100 367 RAIL GROUP 10 4 Meer info
4212777900 405 ALUMINIUM FOIL TAPE 70mmx70mm 1 1 Meer info
4861710100 510 CRISPER TOP COVER 18 1 Meer info
4386101300 512 WATER TANK GROUP 15 1 Meer info
4366420200 601 MIDDLE HINGE GROUP 11 1 Meer info
4366430100 606 BOTTOM HINGE GROUP 8 1 Meer info
4366430200 607 BOTTOM HINGE GROUP 8 1 Meer info
5746750100 630 HOUSING FOR THE ROTATING MIDDLE TRAVERSE 4 1 Meer info
4862780100 639 FILTER COVER _ SBS4K 1 1 Meer info
4551680100 655 SENSOR FIXING PART 1 2 Meer info
4842680100 712 HEATER SPRING (FRONT) 0 4 Meer info
4866210185 715 EVAPORATOR HEATER 13 2 Meer info
4842740100 718 HEATER HOLDER SPRING(BACK) 1 4 Meer info
4834660400 722 MOTOR HOUSE SUPPORT 24 0 Meer info
4249690100 723 FAN MOTOR FRONT BACK COVER 5 2 Meer info
5795380200 724 FAN MOTOR_AC-DC_SPG 25 3 Meer info
4385910100 730 VENTILATION SPACER GROUP 4 1 Meer info
4867890100 745 RAIL 3 1 Meer info
4365810100 755 WHEEL GROUP 1 16 Meer info
4919820100 771 THERMAL INSURANCE 12 2 Meer info
4385620185 771 THERMAL INSURANCE 13 0 Meer info
4344740285 778 SENSOR GR_ICE MAKER SBS 10 1 Meer info
4863010100 783 JPN HOLDER PIN 1 4 Meer info
4390000285 784 CONTROL BOARD ASSY V2 G92611NE 32 1 Meer info
4351910185 793 LED POWER BOARD 5V_2A 20 1 Meer info
4384390300 804 MULTIFLOW COVER GROUP 21 1 Meer info
4382830100 808 CHASIS FOR ICEMATIC_FRZ 13 1 Meer info
4387790700 827 MAIN BOARD COVER GROUP 13 1 Meer info
4333570300 831 BACK COVER GROUP 19 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 1 Meer info
4822290200 851 SUPPRESSION FILTER 8 1 Meer info
4802300300 858 WIRE FAN PROTECTOR 13 2 Meer info
4864410300 876 HANDLE FASTENER INNER 10 8 Meer info
4867340185 880 DRAIN HEATER 12 2 Meer info
4364650185 881 FINNED EVAPORATOR GROUP 22 1 Meer info
4841320300 955 SCREW(M5x25) 1 4 Meer info
4228060500 960 PHOTOCATALYST FILTER 5 1 Meer info
4362021800 966 FOAMED DOOR GROUP 42 1 Meer info
4361991900 967 UPPER LEFT DOOR 44 1 Meer info
4305894800 973 FAN GROUP 26 0 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 1 Meer info
4861510200 987 SLDNG SHELF SUPPORT 5 1 Meer info
4861510100 988 SLDNG SHELF SUPPORT 5 1 Meer info
9000130400 995 RUBBER HOLDER 1 1 Meer info
9000130500 995 RUBBER HOLDER 1 1 Meer info
9000130300 995 RUBBER HOLDER 1 1 Meer info
4867370100 1003 SUPPORTIVE WIRE 8 2 Meer info
4862520100 1033 UPPER HINGE HOUSNG 1 2 Meer info
4365120200 1074 VCC INVERTER ASSY(WITH SUPPLY CORD) 38 1 Meer info
4872210100 1088 FREEZER WIRE SHELF 13 1 Meer info
4365540100 1094 SLIDING SHELF GROUP 18 2 Meer info
4364660185 1101 FINNED EVAPORATOR GROUP 22 1 Meer info
4384370100 1104 EVAPORATOR COVER GR._FRZ 18 1 Meer info
4317995200 1124 IONIZER 15 1 Meer info
4317990200 1124 IONIZER 15 0 Meer info
4317995400 1124 IONIZER 15 0 Meer info
4317990400 1124 IONIZER 15 0 Meer info
4362700185 1124 IONIZER GROUP 17 1 Meer info
4366410100 1142 UPPER HINGE GROUP 10 1 Meer info
4888320100 1164 BLUE_LIGHT_COVER_BLUE 4 2 Meer info
4823800100 1186 ICEBOX TOP BODY 8 1 Meer info
4822980100 1187 ICE MOTOR FIXING RUBBER 1 1 Meer info
4827350100 1188 ICEMATIC MOTOR 26 1 Meer info
5799890100 1188 ICE CUBE MAKER (SBS) 19 0 Meer info
4863820100 1189 ICE MAKER LEVEL ARM 8 1 Meer info
4823290100 1190 INSULATING PART OF ICE CUBE TRAY SENSOR_ 4 1 Meer info
4844900100 1193 WATER DISPENSER FILTER COVER 1 1 Meer info
4844910100 1194 WATER DISPENSER FILTER 1 1 Meer info
4365910400 1211 GLASS SHELF GROUP 18 2 Meer info
4903740100 1232 led card 16 4 Meer info
4352940285 1232 ILLUMINATING MODULE 19 4 Meer info
4399330185 1232 POWER LED BOARD_SINGLE LED_SAMSUNG 18 0 Meer info
4827780100 1272 ILLUMINATING COVER 7 2 Meer info
4399871400 1315 ICEMATC DRAWER GROUP 14 1 Meer info
4861490100 1326 SLDNG SHELF SUPPORT 6 1 Meer info
4365760100 1338 RAIL GROUP 9 2 Meer info
5737860100 1346 WATER PUMP 20 0 Meer info
4897910100 1383 RELAY AHN350Y0 23 1 Meer info
4362002000 1387 FOAMED DOOR GROUP 43 1 Meer info
4362012000 1388 FOAMED DOOR GROUP 42 1 Meer info
4859940185 1389 MOTOR VALVE _ 2 OUTLET 24 0 Meer info
4846940200 1390 STEEL SUPPORT 8 0 Meer info
4386210100 1392 SBS HAB GASKET GROUP 8 1 Meer info
4862320300 1393 PARTITION SPRING 1 2 Meer info
4385140100 1394 ROTATING MIDDLE TRAVERSE 22 1 Meer info
4862400200 1396 HAB BOTTOM COVER 21 1 Meer info
4862340100 1397 SLIDING MID-FLANGE PIN 1 1 Meer info
4834670185 1403 BLUE LIGHT LED CARD (HUALIAN) 11 2 Meer info
4399871500 1415 ICEMATC DRAWER GROUP 15 1 Meer info
4366590100 1421 EVAPORATOR COVER GR._JOKER 19 1 Meer info
4382690700 1422 HANDLE GROUP 24 2 Meer info
4382690800 1423 HANDLE GROUP 23 2 Meer info
4386630101 1432 DRAWER GROUP 15 2 Meer info
4386640100 1433 DRAWER GROUP 19 1 Meer info
4386130100 1434 ICEBOX_GROUP 28 1 Meer info
4867480100 1435 STEEL SUPPORT_U 6 0 Meer info
4386140100 1440 ICEBOX_GROUP 24 1 Meer info
4365930400 1441 GLASS SHELF GROUP WITH STAMPING 14 2 Meer info
4365920400 1441 GLASS SHELF GROUP 18 2 Meer info
4861670100 1442 CRISPER FRAME 8 1 Meer info
4861690100 1443 ZERO DEGREE FRAME 8 2 Meer info
4861680100 1444 ZERO DEGREE BODY 16 2 Meer info
4863580100 1471 CRISPER FRAME 6 1 Meer info
4821900100 1477 Filter Box 5 2 Meer info
4912850100 1498 EVAPORATING PAN GROUP_4K_PANASONIC 30 1 Meer info
4861750100 1502 DRAWER_FRAME 10 2 Meer info
4385570100 1503 DRAWER GROUP 18 2 Meer info
4861730100 1504 DRAWER_FRAME 8 2 Meer info
4385560100 1505 DRAWER GROUP 18 2 Meer info
4386170385 1563 ICE_MACHINE_WATER_ADAPTOR_ GROUP 12 1 Meer info
4862700300 1576 PLASTIC_STOPPER 1 2 Meer info
4862700400 1577 PLASTIC_STOPPER 1 2 Meer info
4862510300 1578 SLINDING PIN SPRING 3 4 Meer info
5752420200 1580 METAL STOPPER 3 2 Meer info
5700140400 1643 MAGNET COVER RAL7039 1 2 Meer info
4882640500 1723 SELENOID VALVE SILICONE 13 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 2 Meer info
4855590100 1822 FRONT BACK COVER_D70540N 6 1 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 2 Meer info
Mode d'emploi (3.88 MB)
Handleiding (3.88 MB)
